Setting up a wireless connection for the Fusion Pro, Fusion Edge, and Fusion Maker laser systems (models 16000–17000) enables seamless integration into your network. Follow the steps below to connect your laser system to a Wi-Fi network for stable, efficient communication.
Wireless Connection Setup
-
Click the gear icon in the top right corner of the laser’s display panel.
-
Select Network from the menu.
-
Select Wireless.
Note: If you don’t see the Wireless option, click the Edit button at the bottom center of the screen.
-

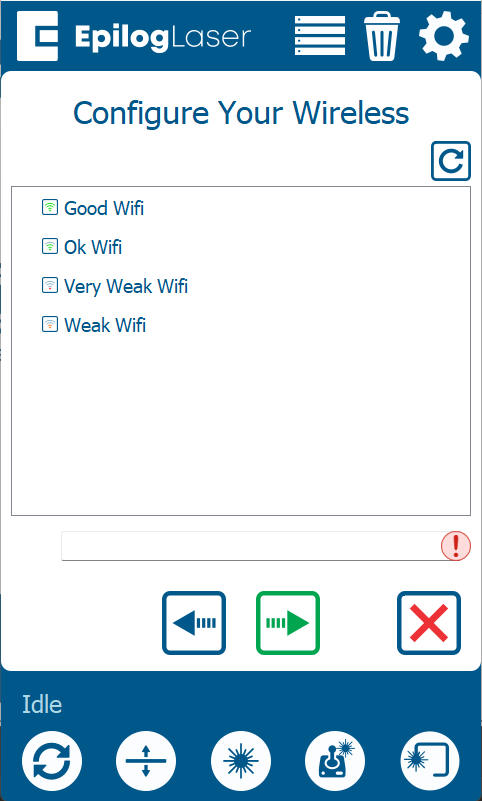

Select your wireless network from the list.
-
Click the green arrow to proceed.
-

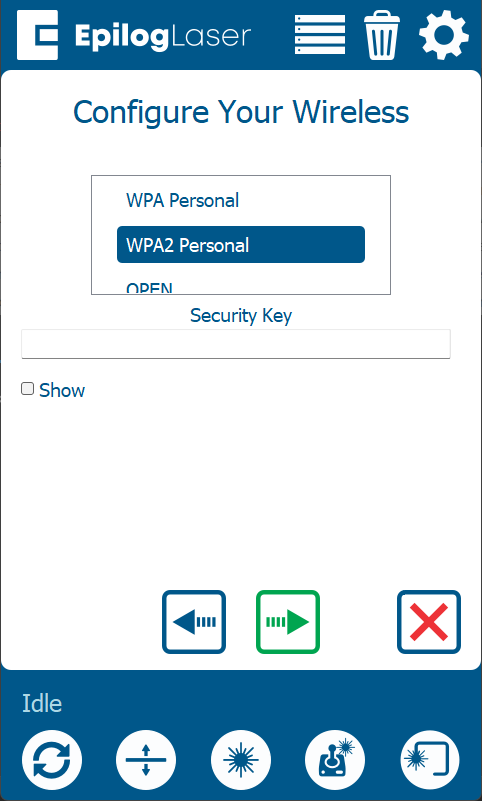

Select the network’s security protocol and enter the password. The most common type is WPA2 Personal.
-

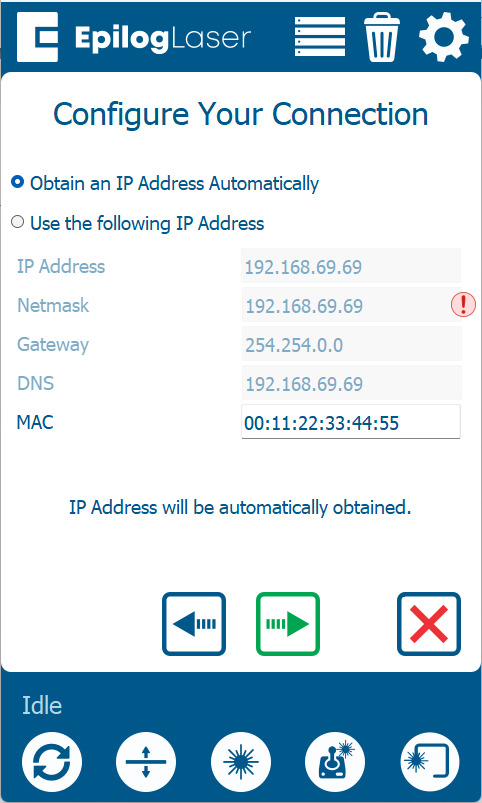

Select Obtain IP Address Automatically.
-
Click the green arrow to complete the setup and connect to the wireless network.
