IRIS Camera Calibration Guide
Estimated Time: 20–40 Minutes • Skill Level: Intermediate Important: All focus calibration procedures must be completed before performing a camera...
Fusion Pro
Filters
Quick Guide: Calibrating the Joystick for Accurate Movement
Steps to Calibrate the Joystick Open the Settings Menu On the display panel, press the gear icon in the top-right...
When to Calibrate the IRIS Camera System
Applies to: Fusion Maker • Fusion Edge • Fusion Pro • G100 All Fusion Maker, Edge, Pro, and G100 engravers...

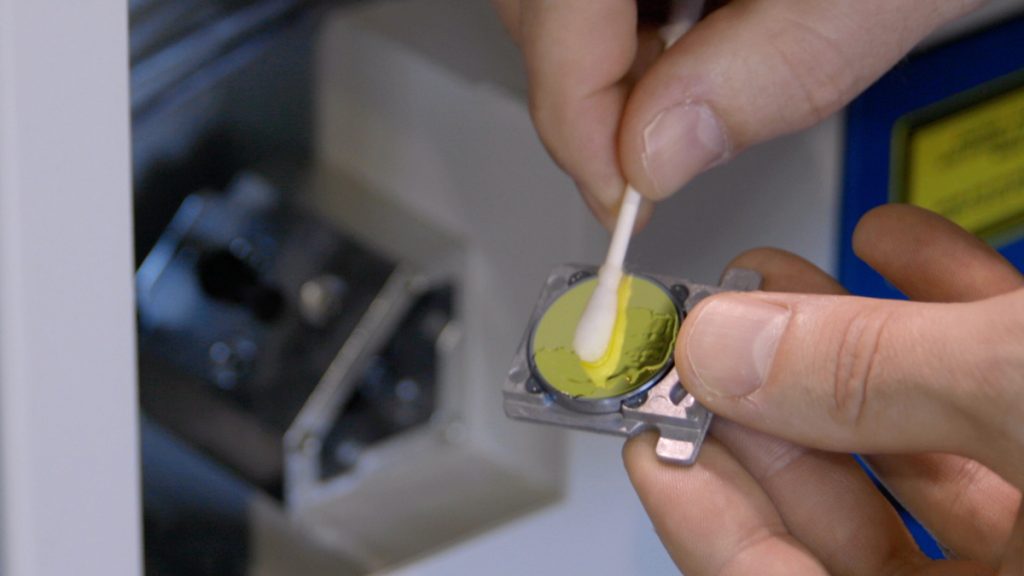

Cleaning Your Optics
Cleaning the Lens Tube Optics To begin the procedure of cleaning your optics, with the machine powered on, select...
Cleaning Your Optics
Cleaning the Focusing Lens Optics The mirrors in the periscope housing are enclosed, and will likely require cleaning less often...
Laser Alignment – Maker / Edge / Pro
Turn On To begin the laser alignment procedure, power on the laser. For the following procedures, the table will be...

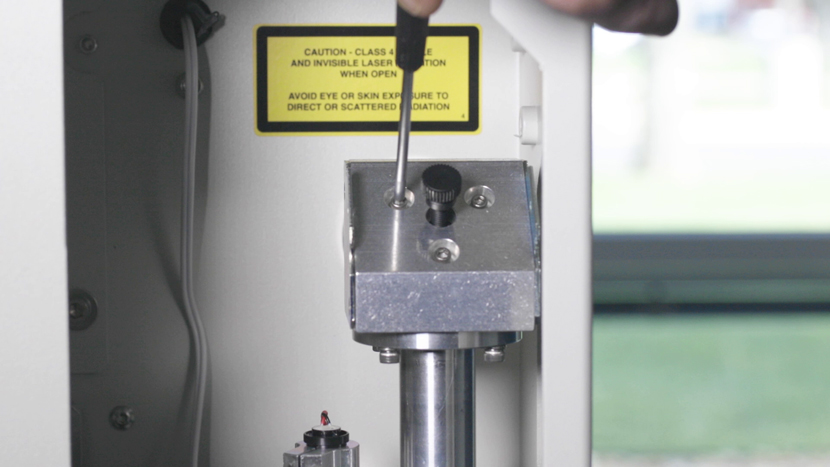

CO2 Laser Alignment – Fusion Pro 32 & 48
Please find the attachment for an in-depth description. Was this helpful? Yes No Submit Cancel Thanks for your feedback!...
Focus Calibrations – Fusion Maker, Edge, and Pro
Please find the attachment for an in-depth description. Was this helpful? Yes No Submit Cancel Thanks for your feedback!...
Fiber Alignment – Fusion Pro 32 & 48
This guide provides step-by-step instructions for performing precise laser alignment on the Fusion Pro CO2 and Fiber laser systems. Proper...
Touchpad Calibration – Fusion Maker, Edge, and Pro 24 and 36
Estimated time: 5 minutes • Skill: Basic Touchscreen calibration ensures accurate touch response when selecting options and settings on the...
Fiber Laser Alignment
Fiber laser alignment is a crucial maintenance procedure to ensure the optimal performance of your Fusion Edge and Fusion Pro...
Leveling the Table
This document outlines the table leveling procedure for the Fusion Maker, Edge, and Pro 24 and 36. Table level should...
Leveling the Table
This document outlines the table leveling procedure for the Fusion Pro 32 and 48. Table level should be checked periodically...
Adjusting the Home and Park Positions
This document outlines the home and park position adjustment procedures for the Fusion Maker, Fusion Edge, and Fusion Pro. Was...
X-Axis Belt Tensioning Guide
Identifying X-Axis Rail Version Before you begin, determine which version of the X-Axis rail is installed in your machine. Check...

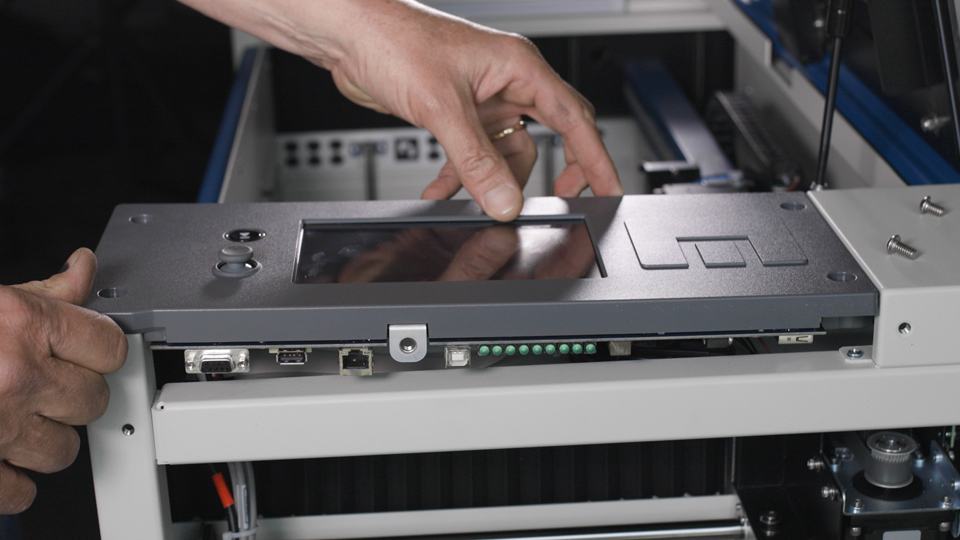

Control Module Replacement – Fusion Pro 32 & 48
This document provides a step-by-step guide on how to replace the control board in your laser system. Replacing the control...
Edge Stand Assembly
The Fusion Edge Stand is an essential accessory designed to support your laser system with stability and ease of mobility....
Purchase or Print a New Laser Alignment Target
Accurate laser alignment is essential to achieving clean, precise engraving and cutting results. Over time, alignment targets can wear out...
