Extended Cold Start Guide
Lasers that have been inactive for a period of time may not fire right away. There are settings in the...
Fusion Pro
Filters

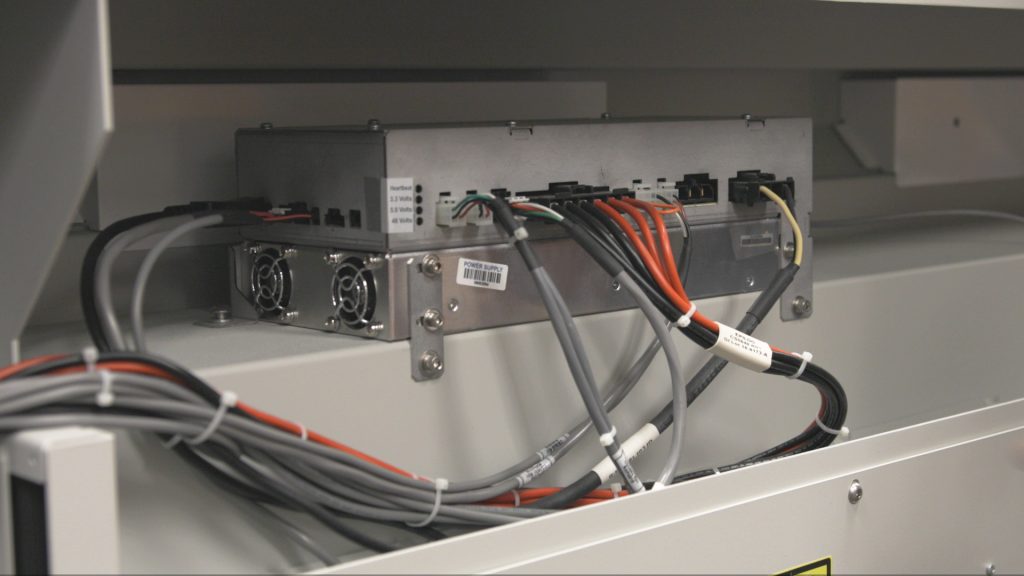

Power Supply Replacement – Fusion Pro 32 & 48
Power Supply Locations CO2- Only Fusion Pro This model will contain only the CO2 power supply shown above. One (1)...
CO2 Laser Tickle Settings
Introduced in the Epilog Mini and Helix engravers, laser tickle settings allow the user to customize certain CO2 laser characteristics...

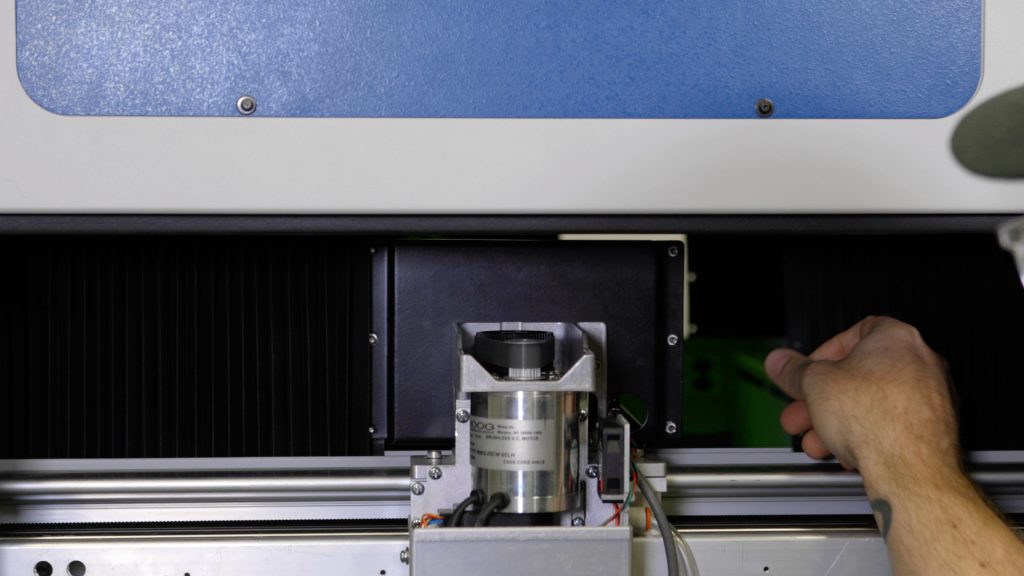

Squaring the Y-Axis Actuators
Estimated time: 20–30 minutes • Skill: Intermediate This procedure explains how to square the Y-Axis rails on 16K-series laser systems....
CO2 Laser Replacement Checklist / No Output
These items should be checked before replacing a CO2 laser tube with no output. If the laser has been inactive...

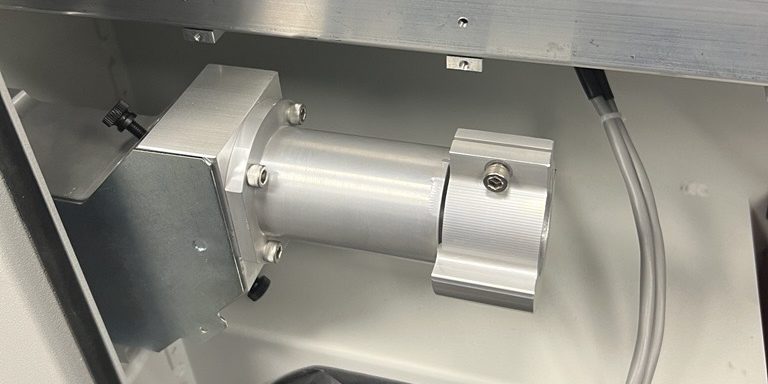

Beam Combiner Replacement – Fusion Pro
Dual-source machines are equipped with both CO2 and Fiber lasers. To enable these lasers to work in unison, their beams...

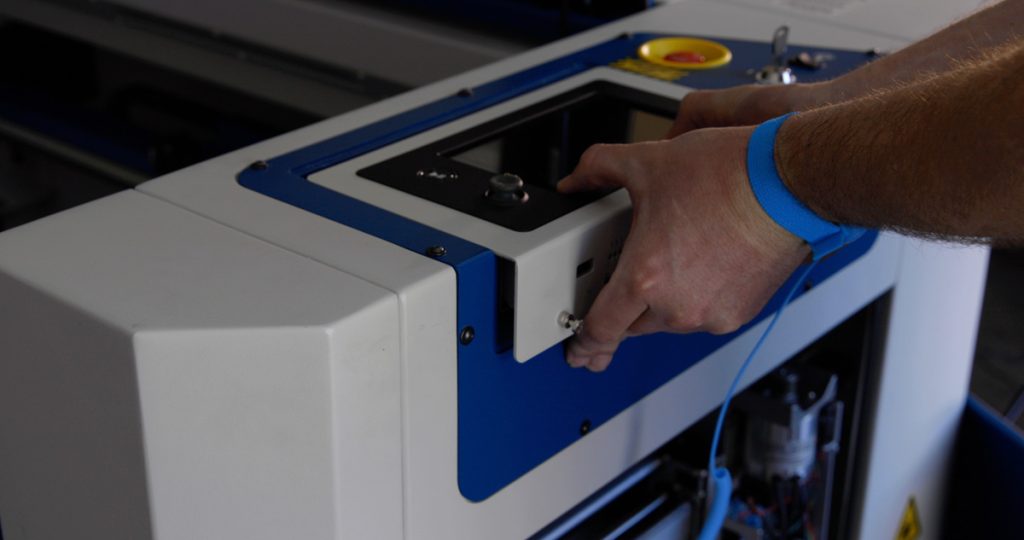

Replacing the Control Panel
Replacing the Control Panel Before we begin, turn off and unplug the Fusion Pro. Using a 5/32” Allen Key, remove...
Power Supply Replacement
Remove Old Power Supply Now move to the rear of the machine. Using the 5/32″ Allen Wrench, remove the screws...

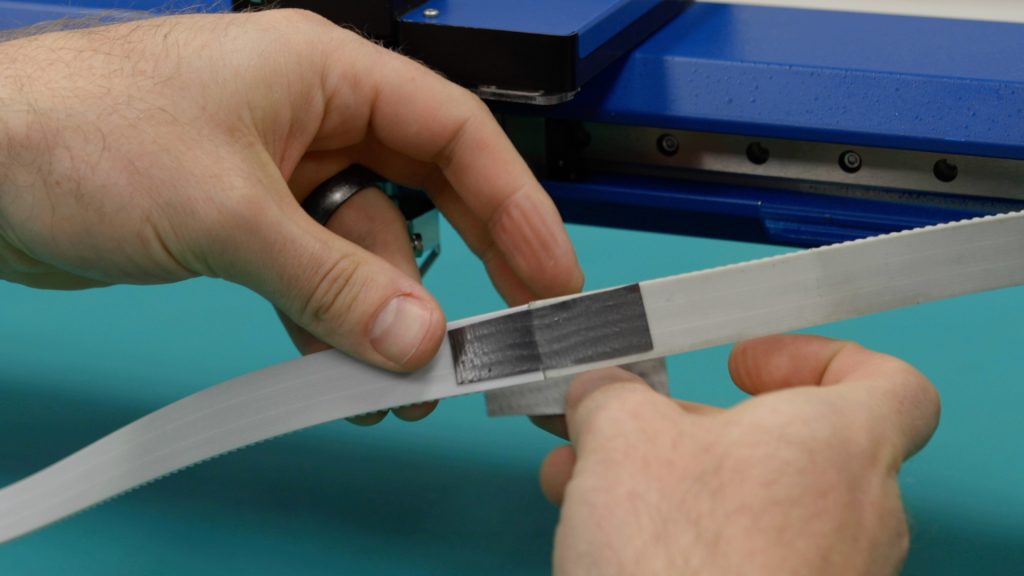

Replacing the X-Axis Belt on the Fusion Pro
Loosen X-Belt Start by powering of and unplugging the machine. Using a 5/32” Allen Key, remove the left side panel...
X-Motor Replacement
Remove Side Panel Before we begin, make sure you turn off & unplug the machine. Using a 5/32” Allen wrench,...

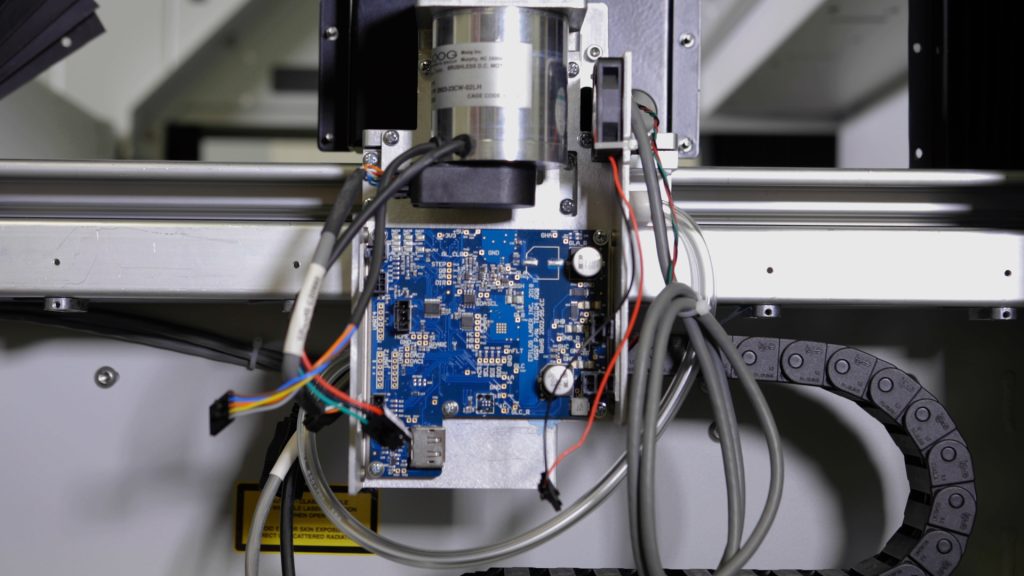

X-Axis Assembly Replacement
X-Axis Assembly Removal First, power off and unplug the machine. Using a 5/32” Allen Key, remove the right side panel...

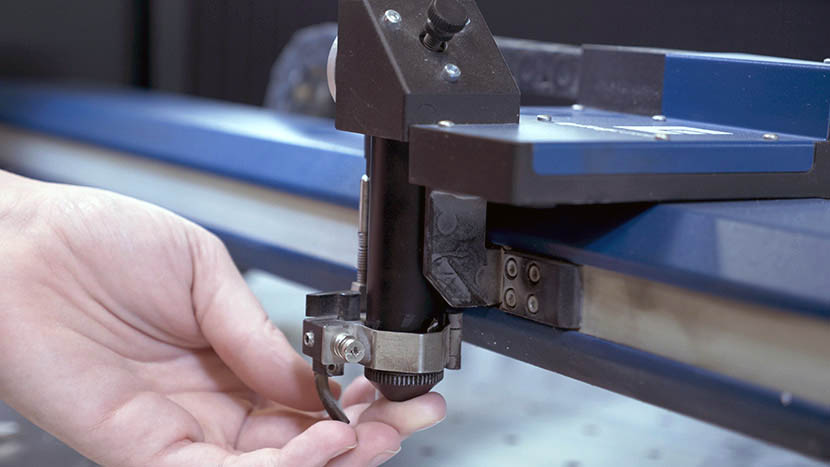

Replacing Optics
Remove the Current Lens Begin by Jogging the lens assembly closer to the front of the machine. To do this,...
Replacing the Laser Tube
Remove Panels Shut off the laser and remove the power cord from the machine. For this procedure you will need...

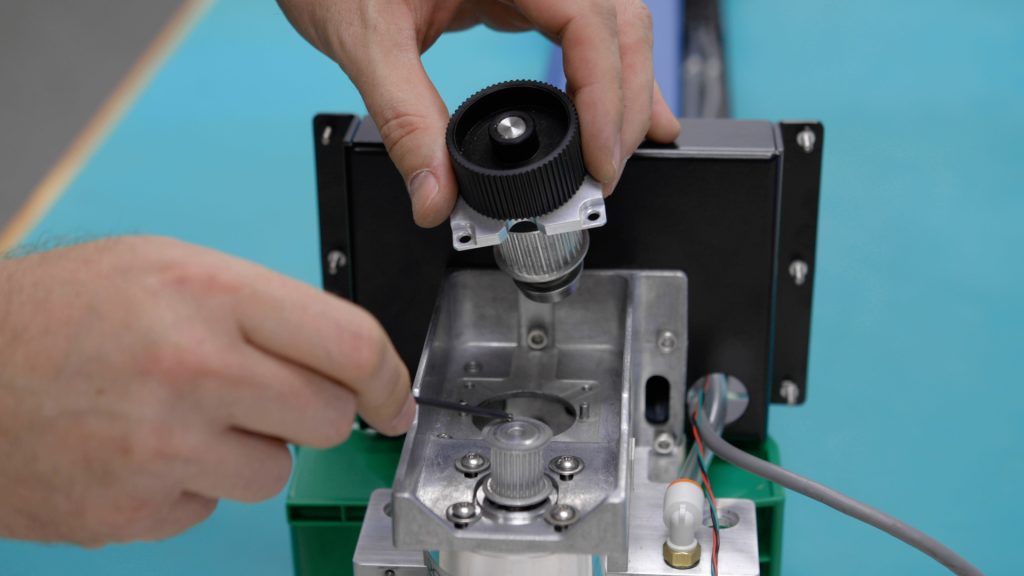

Replacing the Reducer Drive Assembly
Remove Panels First, power off and unplug the machine. Using a 5/32” Allen Key, remove the right side panel from...
Blurry Driver Screen On Windows 10
Please find the attachment for an in-depth description Was this helpful? Yes No Submit Cancel Thanks for your feedback!...
Top Door Replacement
Please find the attachment for an in-depth description. Was this helpful? Yes No Submit Cancel Thanks for your feedback!...
X-Axis Motor Replacement
This document outlines the replacement of the x-axis motor in the Fusion Pro 32 and 48. Was this helpful? Yes...
Y-Axis Home Switch Replacement
This document outlines the replacement of the y-axis home switch in the Fusion Maker, Edge, and Pro 24 and 36....
