To use your Epilog Laser system you will need to vent or exhaust the laser.
Here we’ll show you three different options for exhausting your system. It’s always a good idea to start by consulting with your local HVAC professional to see what is ideal for your specific situation.
The Fusion M2 systems require 650 CFM for external exhaust.
It’s important that either rigid or flexible metal ducting be used with the laser. Plastic or other soft ducting is potentially flammable and should not be used unless provided by the filtration system manufacturer and made from fire-proof materials.
Exhaust Option 1: Exhaust Motor Blower
What we have here is a standard 2 Horsepower exhaust motor blower. It is very simple to set up.

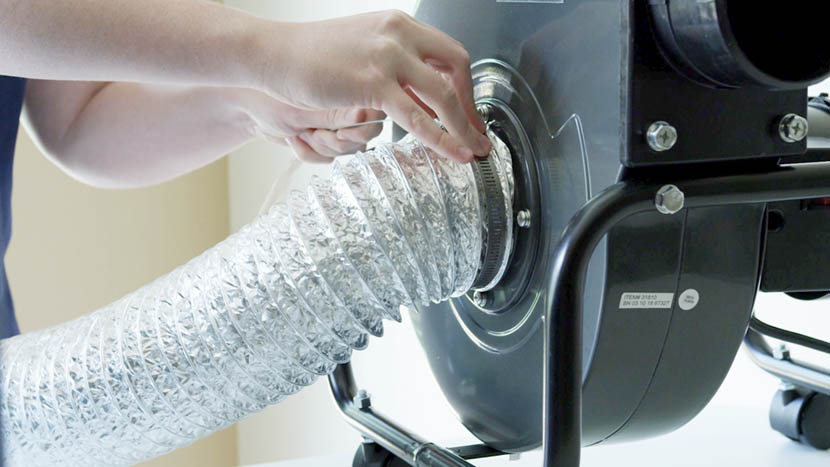

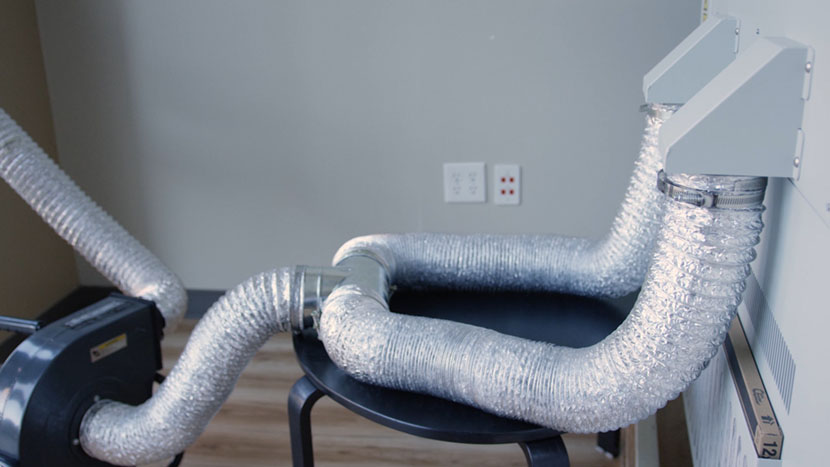

Hook up the exhaust hose to the machine, using a quick clamp to secure the hose to the machine.

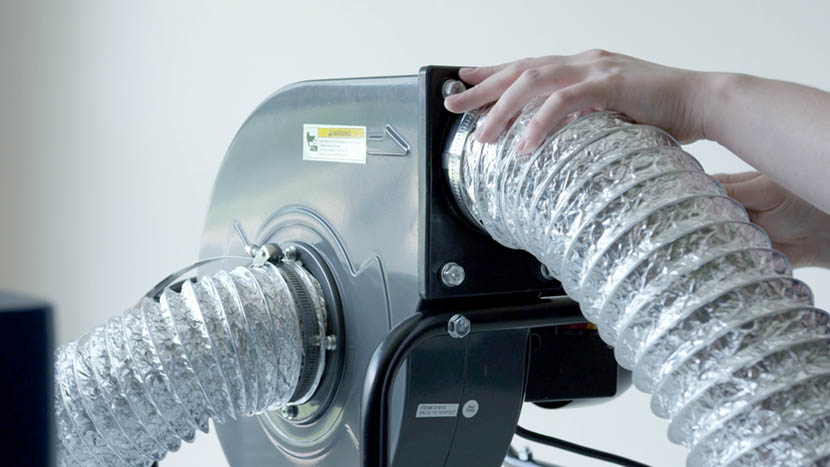

Then, connect the other end of the hose to the intake port on your motor blower.
Next, connect another exhaust hose to the out-take port of the blower and the other end to a wall vent or window.
This solution is the most cost-effective option, but will be noisier than the other two options.
Exhaust Option 2: Filtration System

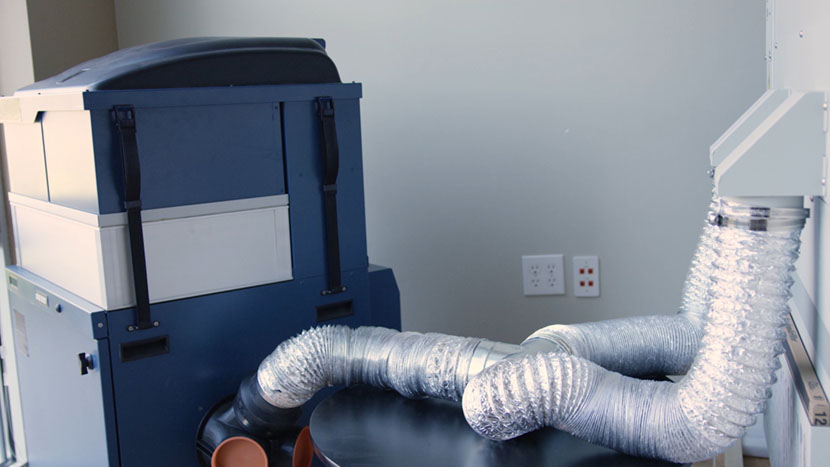

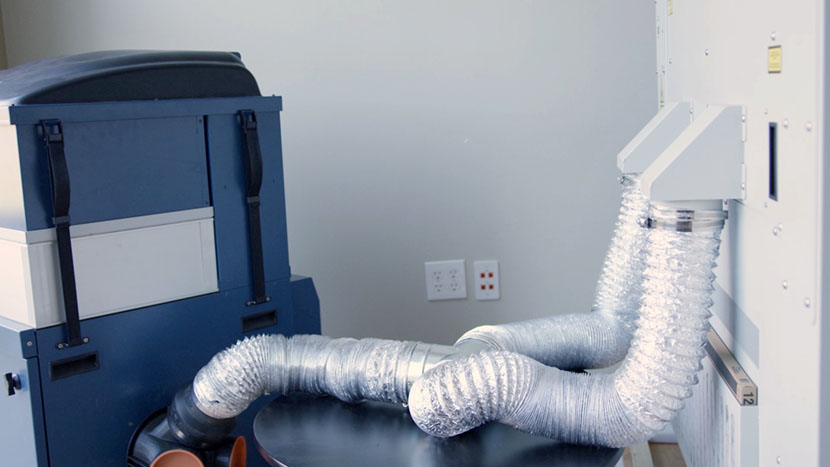

Another option is to hook up your Fusion M2 laser to an internal filtration system.
Required exhaust flow rates for filtration systems might be lower than the 650 CFM we require for external exhaust, because the filtration system will be placed directly adjacent to the laser system and does not exhibit the air-flow losses typically found with direct exhaust fans.
Please contact your Epilog distributor to help you match an exhaust system to the Epilog Laser machine you are using.
The standalone filtration systems are ideal if you cannot run an exhaust line to the roof or are looking to travel with the laser.

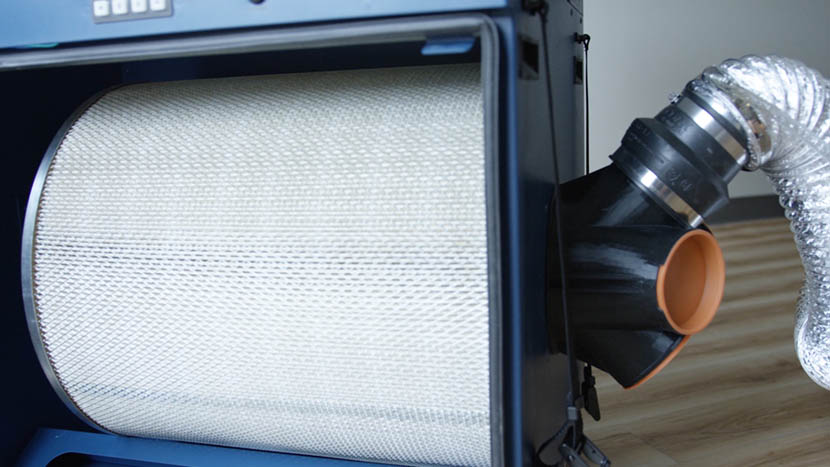

These units typically use a HEPA/Carbon Charcoal filter to remove odor, dust, and smoke.
There are several manufacturers of these types of filtration units that your distributor can help you choose between.
Exhaust Option 3: Outdoor Exhaust Unit
What we have here is an ideal setup in an office environment for exhausting fumes from an Epilog Fusion M2.

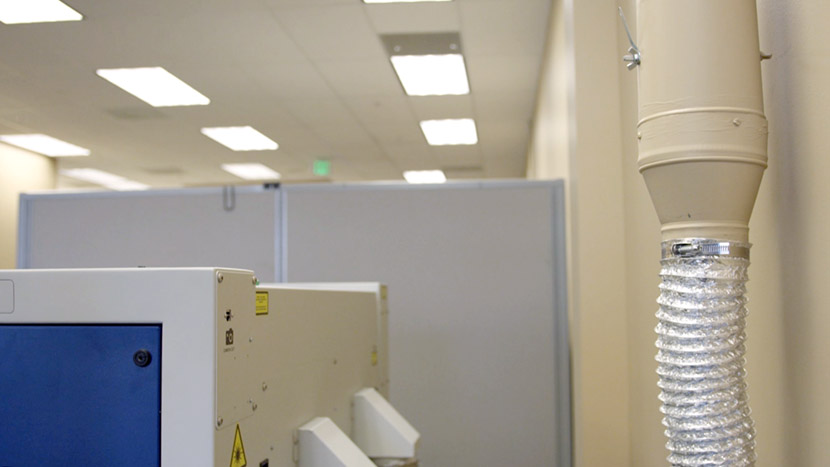

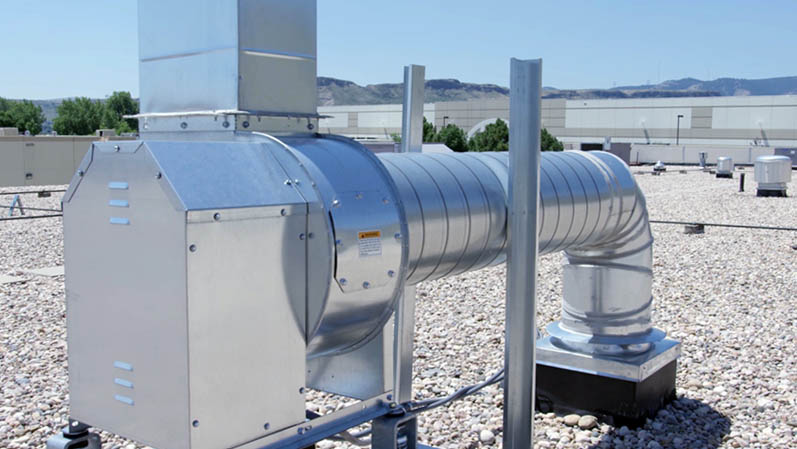

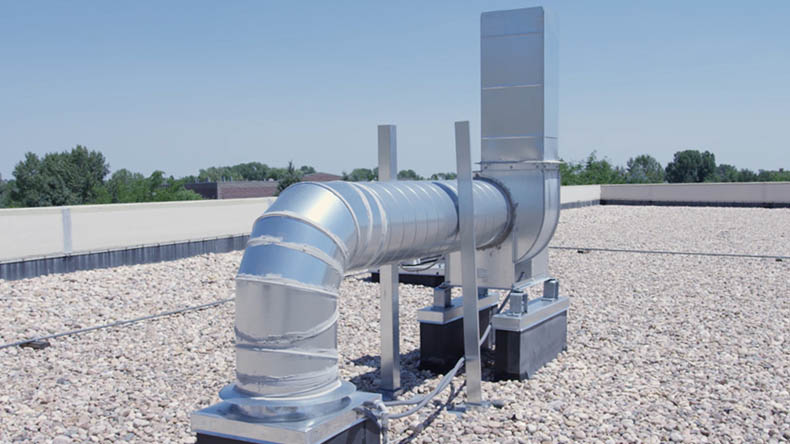

We have our exhaust pipe mounted against the wall connected to the motor blower on the outside of the building to ventilate outdoors.

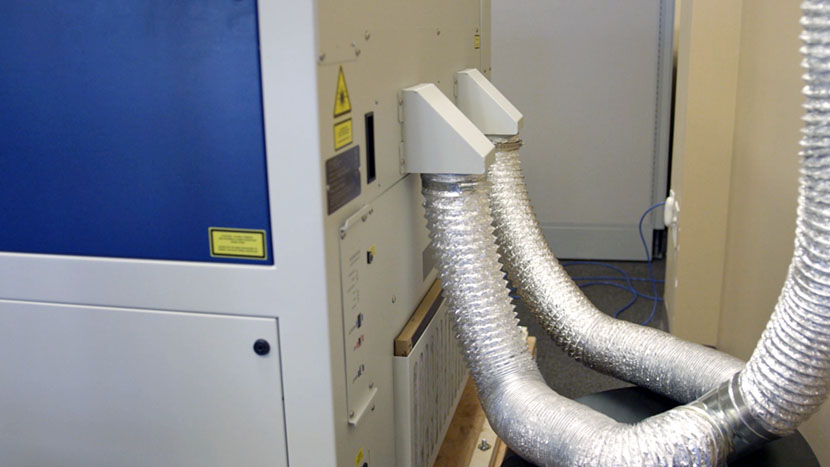

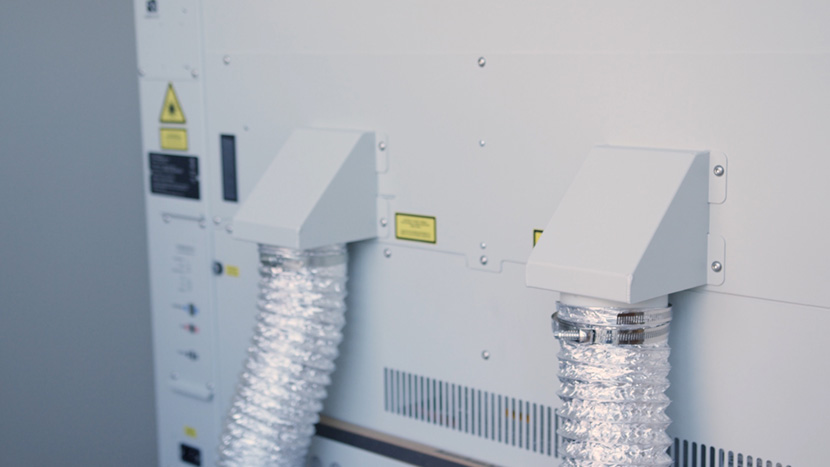

Coming off the back of the laser, we have the exhaust port attached to flexible metal piping.
You want to keep the flexible portion of the tubing as short as possible to reduce air turbulence and to increase air flow.
Above the flexible tubing, we connect to a single or double galvanized steel straight pipe, depending on your exhaust system requirements and set up.
Your local HVAC professional can help you with setting up the best solution for your specific needs.

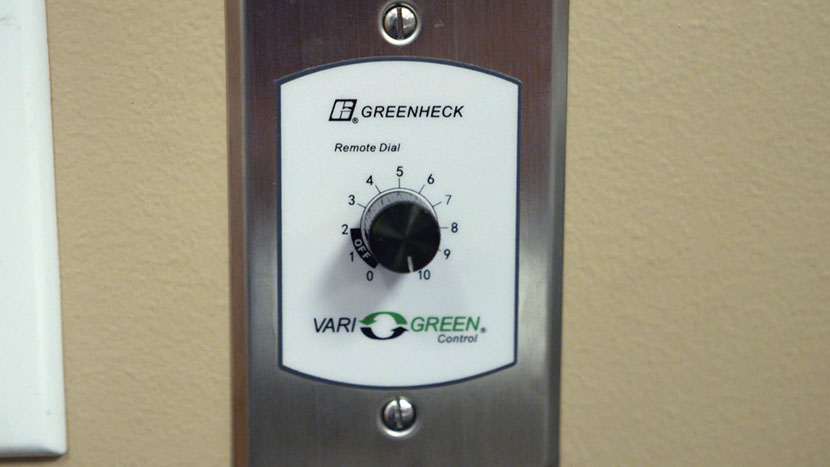

We suggest putting the exhaust blower outside with an electrical switch near the machine to turn on and off the blower.
This provides you with the quietest, most efficient operation.
