X-Axis Belt Tensioning Guide

How do I tension the X-Axis belt on my Fusion Edge, Maker, or Pro?

Introduction

This document and the video below cover how to use the X-axis belt tensioning tool. The tool measures the belt's tension so you can adjust it as needed. Incorrect

Note: The video shows the Rev 1 procedure only. Before watching it, use the "Identify Your X-Axis Rail" section below to check which rail your machine has. If you have a Rev 2 rail (including all Fusion Ascent machines), skip the video and follow the Rev 2 steps.

This guide covers checking and adjusting the X-axis belt tension with the Epilog belt tensioning tool. Two versions of the X-axis rail are in use, and they are adjusted differently, so start by identifying your rail below. Select your rail and only the steps for that rail are shown. Directions such as left-hand and right-hand are given as if you are facing the front of the machine. In the images, blue marks screws to loosen, turn, or tighten, green marks the tool or part going in, and yellow arrows show parts to move by hand.

Parts Required

  • CS1280 Belt Tensioner

Tools Required

  • Epilog Belt Tensioning Tool
  • 7/64″ Allen Wrench (Rev 1 rail)
  • 5/32″ Allen Wrench (Rev 2 rail)

Safety First: Turn off the engraver and unplug it from power before removing any panels.

Identify Your X-Axis Rail

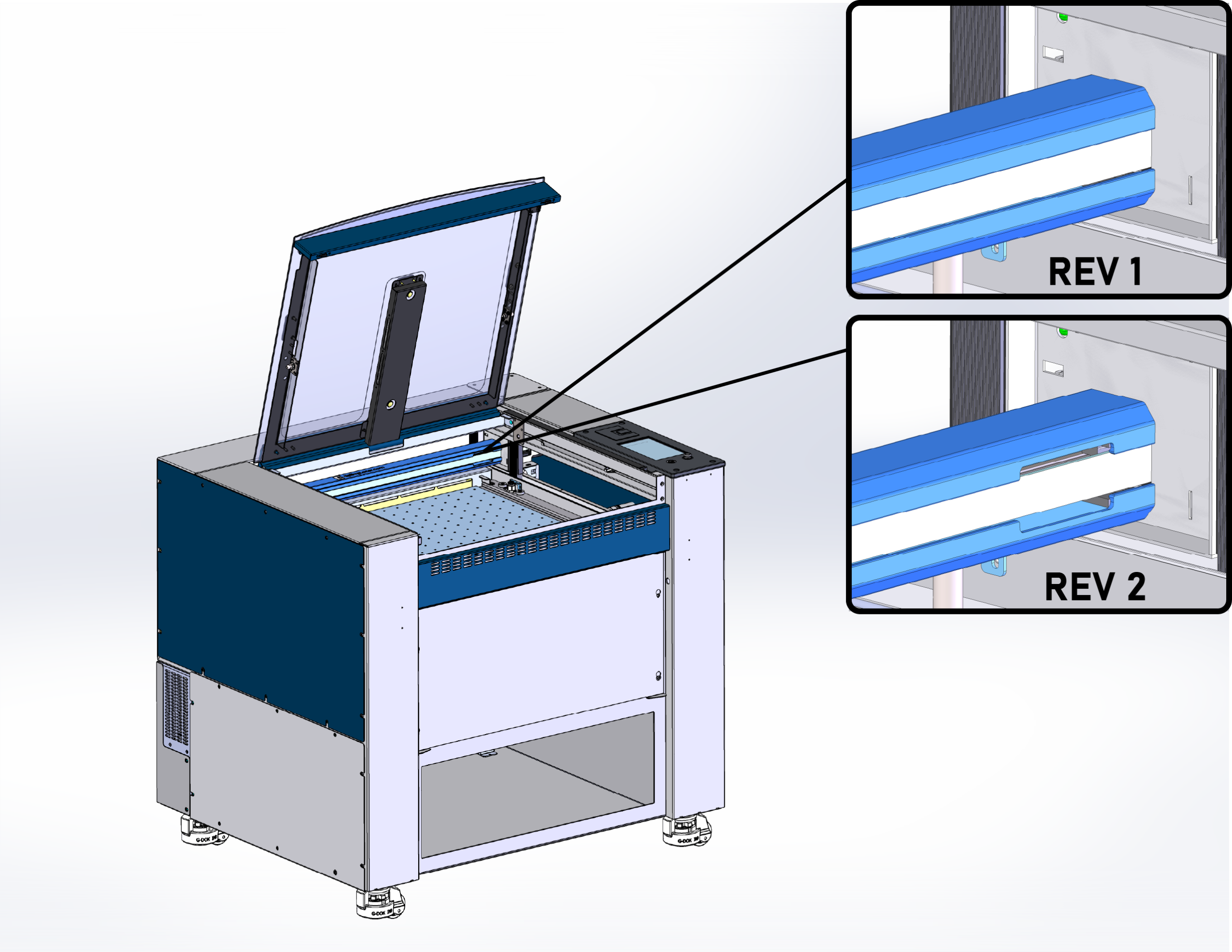

Open the top door and look at the right-hand end of the X-axis rail, where the belt runs. The Fusion Ascent always uses the Rev 2 procedure; its rail has small covers over the cutouts on the ends of the rail, so it may look a little different from the picture. Fusion Edge, Fusion Maker and Fusion Pro machines can have either. Select the rail that matches your machine.

  • Select your rail above to show the steps for your machine.

  • Rev 1 Rail: Belt Tension and Tracking

    Not your rail? Show the Rev 2 steps

    Check the Tension

    Step 1

    Turn Off the Engraver

    Turn off the engraver and unplug it from its power source.

    Step 2

    Remove the Left Side Panel

    Remove the left-hand side panel to reach the left-hand end of the X-axis assembly.

    Step 3

    Position the Lens Carriage

    Open the top door. By hand, slide the lens carriage to the right-hand side, and move the X-axis assembly toward the front, about halfway down the table.

    Step 4

    Insert the Tensioning Tool

    At the center of the X-axis assembly, push the tip of the belt tensioning tool into the opening in the front of the rail, against the X-axis belt.

    Note: The notches on the tip of the tool must line up with the edges of the opening in the rail, where the belt runs. The tool only gives an accurate reading when it is seated this way.

    Step 5

    Read the Belt Tension

    Hold the tool flush against the rail. The red O-ring on the rear shaft shows the belt tension:

    • Correct: the O-ring is flush with the end of the tool.
    • Too low: the O-ring is hidden inside the tool.
    • Too high: there is a gap between the O-ring and the end of the tool.

    See the three readings side by side.

    Warning: Do not adjust the knurled ring on the tensioning tool. Each tool is calibrated at the factory.

    Adjust the Tension

    Step 6

    Loosen the Rear Idler Screws

    At the left-hand end of the X-axis assembly, loosen the four 7/64″ screws (blue) on the rear of the idler bracket. Loosen them just enough for the bracket to slide; do not remove them.

    Step 7

    Loosen the Front Idler Screws

    Loosen the four 7/64″ screws (blue) on the front of the idler bracket the same way.

    Step 8

    Adjust the Tension Screws

    Turn the two 7/64″ tension screws (blue) on the end of the idler bracket evenly, the same amount each.

    Note: Tightening these two screws adds tension to the belt. Loosening them removes tension.

    Step 9

    Check the Tension Again

    Repeat steps 4 and 5, checking the belt tension each time you turn the tension screws, until the O-ring is flush with the end of the tool.

    Check the Belt Tracking

    Step 10

    Create a Test Job

    In your graphics software, create a black raster box about 2 inches narrower than the table and 4 inches tall.

    Step 11

    Set Speed and Power

    Set the job to 100% speed and 0% power.

    Step 12

    Run the Job

    Send the job to the engraver, open the top door, and start the job.

    Step 13

    Watch the Belt on the Idler Pulley

    As the lens carriage moves left and right, the belt should stay in the middle of the idler pulley, clear of both flanges.

    Step 14

    Adjust the Tracking

    If the belt rides against a flange of the idler pulley, turn the two tension screws by equal but opposite amounts:

    • Belt too high: tighten the top screw 1/4 turn and loosen the bottom screw 1/4 turn.
    • Belt too low: loosen the top screw 1/4 turn and tighten the bottom screw 1/4 turn.

    Step 15

    Check the Tension Again

    When the belt tracks in the middle of the pulley, check the belt tension again (steps 4 and 5). Adjust it if needed (step 8).

    Step 16

    Tighten the Idler Screws

    With the tension and tracking set, tighten the eight 7/64″ screws (blue), four on the rear and four on the front of the idler bracket, to lock it in place.

    Step 17

    Install the Left Side Panel

    Install the left-hand side panel and close the top door.

  • Rev 2 Rail: Belt Tension

    Not your rail? Show the Rev 1 steps

    Note: Fusion Ascent owners: your machine uses these Rev 2 steps. The Ascent rail has small covers over the cutouts on the ends of the rail, so it may look a little different from the pictures; the tool and adjustments are the same.

    Check the Tension

    Step 1

    Turn Off the Engraver

    Turn off the engraver and unplug it from its power source.

    Step 2

    Remove the Left Side Panel

    Remove the left-hand side panel to reach the left-hand end of the X-axis assembly.

    Step 3

    Position the Lens Carriage

    Open the top door. By hand, slide the lens carriage to the right-hand side, and move the X-axis assembly toward the front, about halfway down the table.

    Step 4

    Insert the Tensioning Tool

    At the center of the X-axis assembly, push the tip of the belt tensioning tool into the opening in the front of the rail, against the X-axis belt.

    Note: The notches on the tip of the tool must line up with the edges of the opening in the rail, where the belt runs. The tool only gives an accurate reading when it is seated this way.

    Step 5

    Read the Belt Tension

    Hold the tool flush against the rail. The red O-ring on the rear shaft shows the belt tension:

    • Correct: the O-ring is flush with the end of the tool.
    • Too low: the O-ring is hidden inside the tool.
    • Too high: there is a gap between the O-ring and the end of the tool.

    See the three readings side by side.

    Warning: Do not adjust the knurled ring on the tensioning tool. Each tool is calibrated at the factory.

    Adjust the Tension

    Step 6

    Loosen the Tensioner Screws

    At the left-hand end of the X-axis assembly, loosen the three 5/32″ screws (blue) on the tensioner arm. Loosen them just enough for the arm to pivot; do not remove them.

    Step 7

    If the Tension Is Low

    Turn the 5/32″ tensioner adjustment screw (blue) clockwise to add tension.

    Step 8

    If the Tension Is High

    Turn the adjustment screw (blue) counterclockwise to remove tension.

    Step 9

    Check the Tension Again

    Repeat steps 4 and 5, checking the belt tension each time you turn the adjustment screw, until the O-ring is flush with the end of the tool.

    Step 10

    Tighten the Tensioner Screws

    When the tension is correct, tighten the three 5/32″ screws (blue) on the tensioner arm.

    Step 11

    Install the Left Side Panel

    Install the left-hand side panel and close the top door.

Was this helpful?

Yes
No
Thanks for your feedback!
  • ID:
    KA-01626
  • Date:
    11/22/2026

Tools:

  • 7/64" Hex Driver
  • 5/32" Hex Wrench

Parts & Resources:

  • CS1280 Belt Tensioner
