In this lesson we’ll walk you through unpacking the Epilog Zing laser system.
Please be sure to hold on to all packing materials and crating in case you need to move the system in the future.
Open the Box

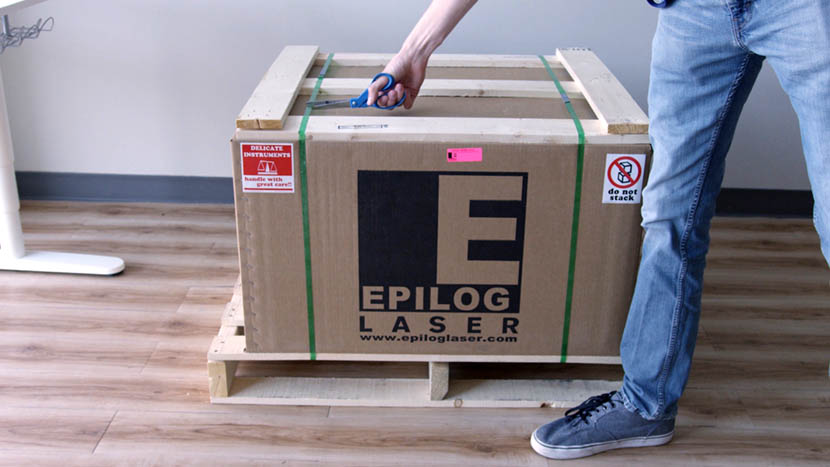

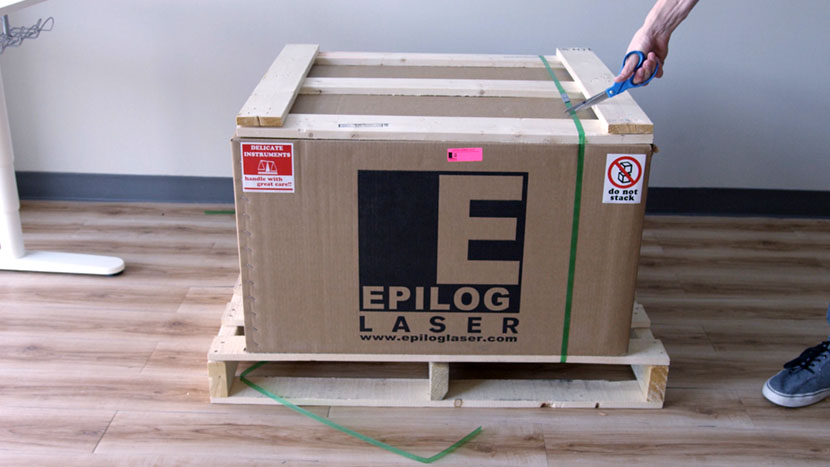

Begin by using scissors or a utility knife to cut the box straps. Be sure to stand clear of the straps when cutting them, as they may pop out at high speed when cut.

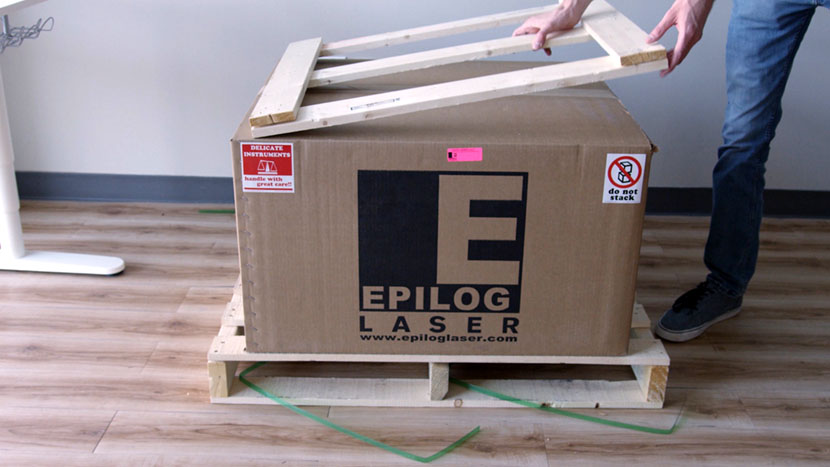

Then remove the strapping and the wooden box topper.

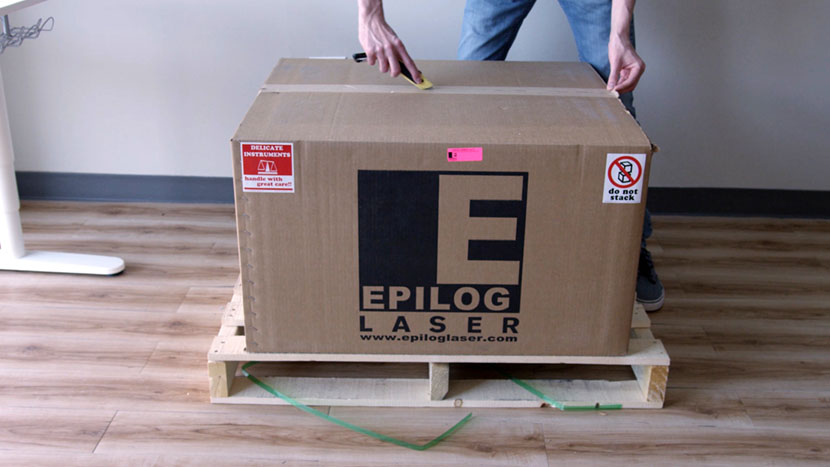

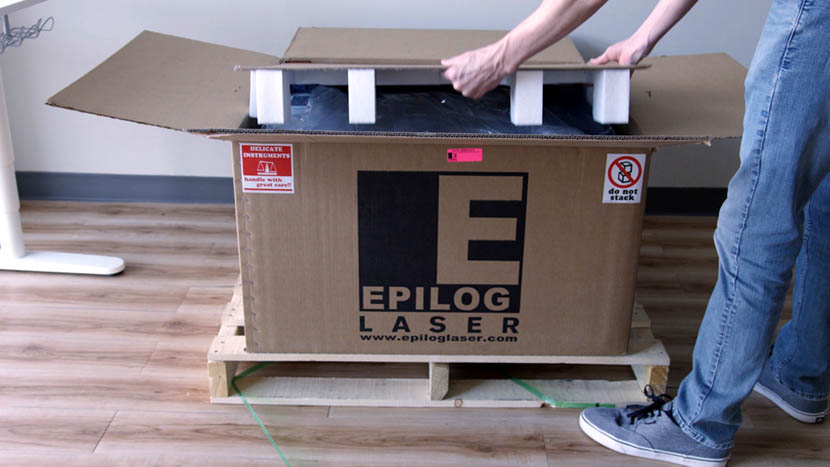

Next, cut the tape securing the box closed, then open the box and remove the cardboard topper with attached foam inserts.
Remove the Machine

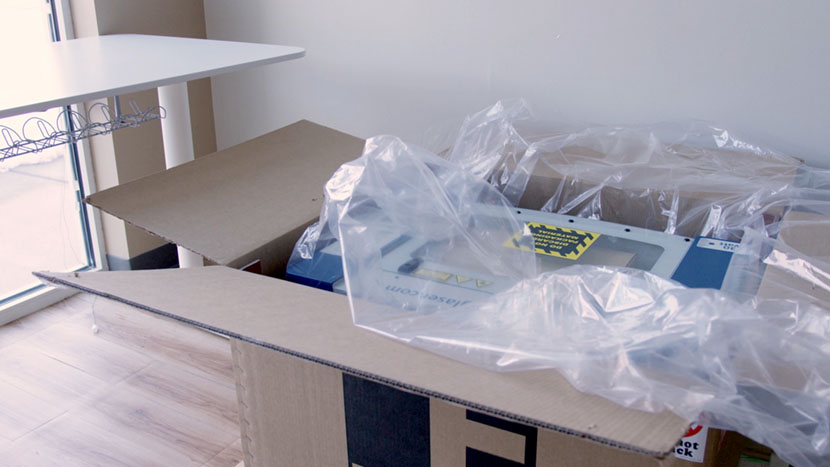

Cut the tape holding the bag closed and spread the bag over the sides of the box.
The Zing 16 and Zing 24 range in weight from 95 lbs (43 kg) to 140 lbs (63.5 kg).

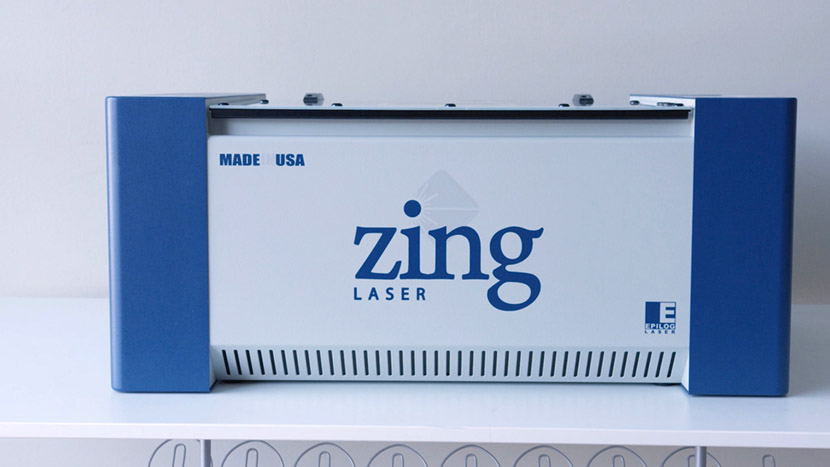

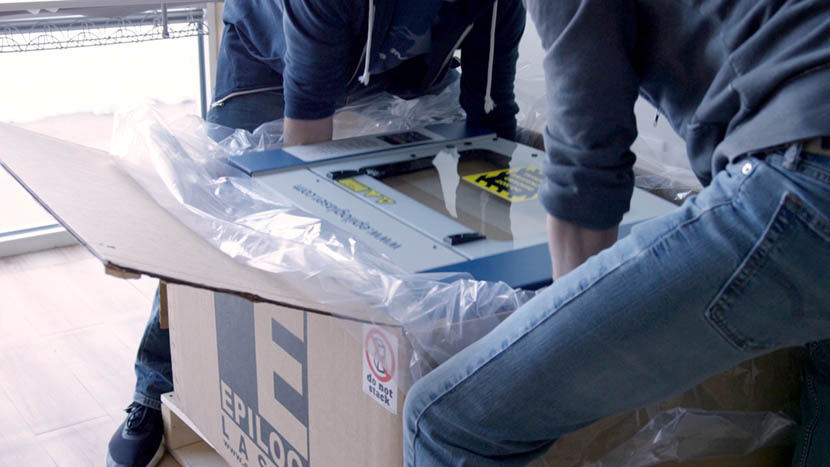

With the help of an additional person, lift your Zing laser system out of the box and place it on a sturdy level surface.
Make sure not to discard the packaging material at this time.
Included Items and Materials

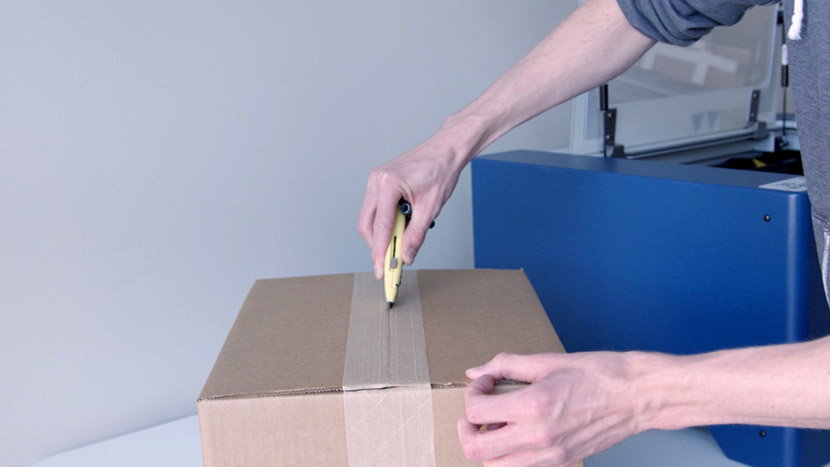

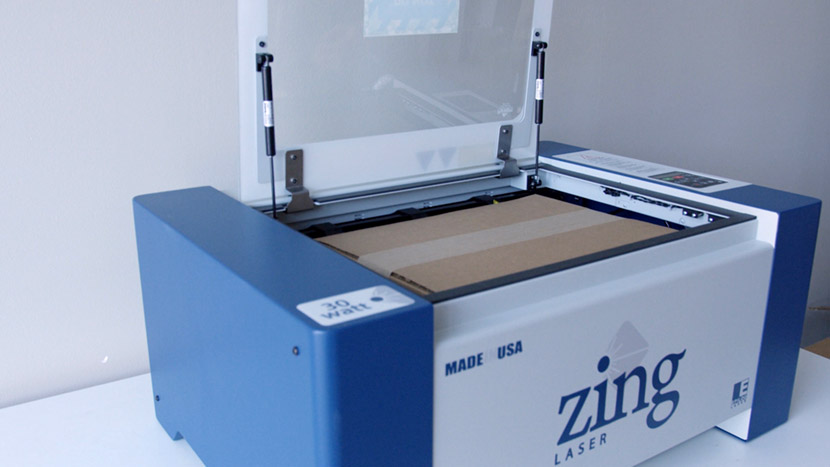

Open your Zing laser system’s top door, and remove the included items from the cabinet, then open the box of included items.

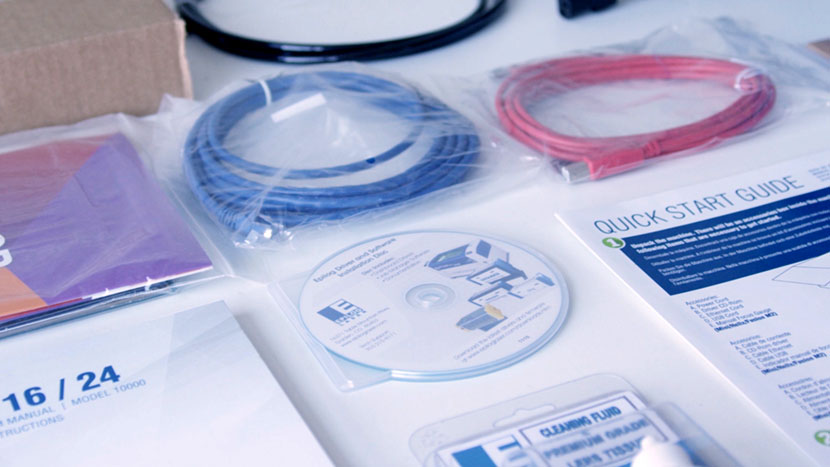

Your Zing laser system will include:
- A power cord
- Ethernet cord
- USB cord
- Air Assist tube
- Lens cleaner
- Laser beam alignment target
- Driver Installation CD
- Quick Start Guide
- Owner’s Manual
- Training suite signup card & kit
- Vendor sample material kit (Note: Material samples may vary)
