To use your Epilog system you will need to vent or exhaust the laser. Here we’ll show you three different options for exhausting your system.
It’s important that either rigid or flexible metal ducting be used with the laser.
Exhaust Option 1: Exhaust Motor Blower
The noisiest but most cost-effective exhaust option is a standard exhaust motor blower, such as the 2 horsepower motor blower shown below. It is very simple to set up.

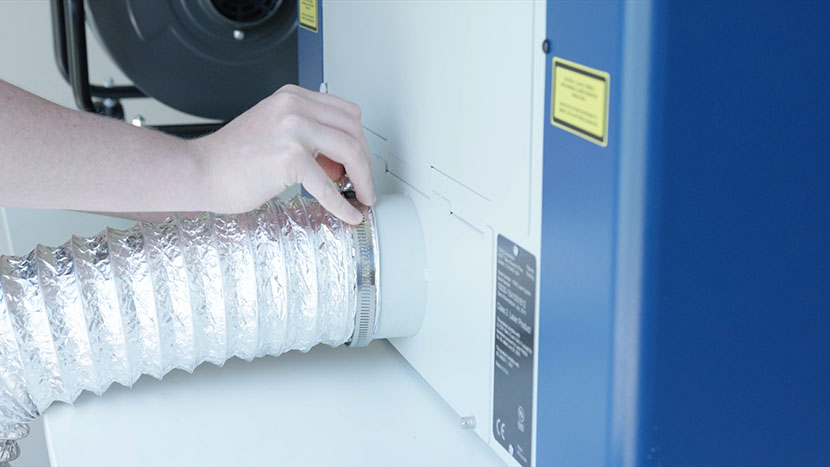

Hook up the exhaust hose to the machine. Use a quick clamp to secure the hose to the machine.

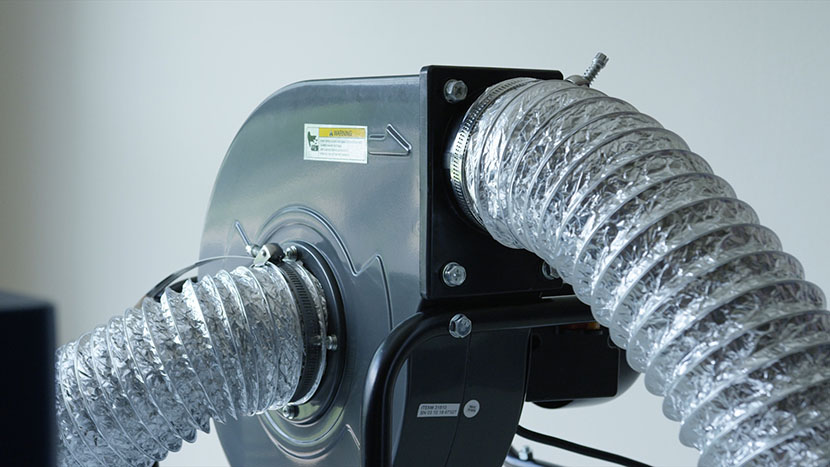

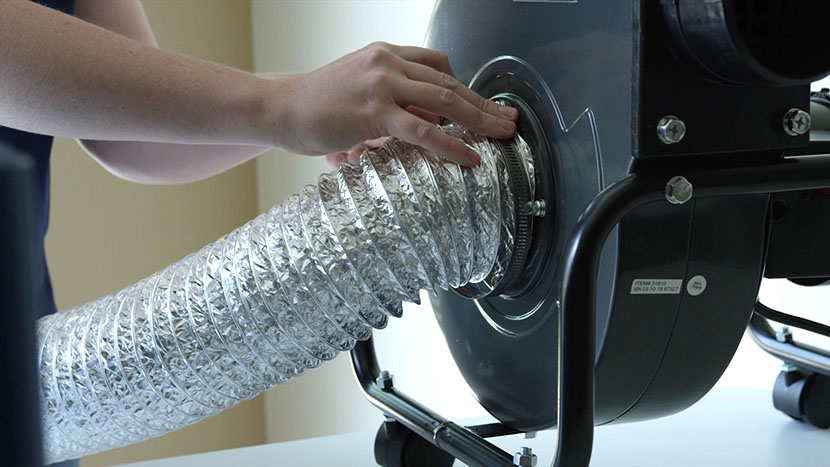

Then, connect the other end of the hose to the intake port on your dust collecting blower.

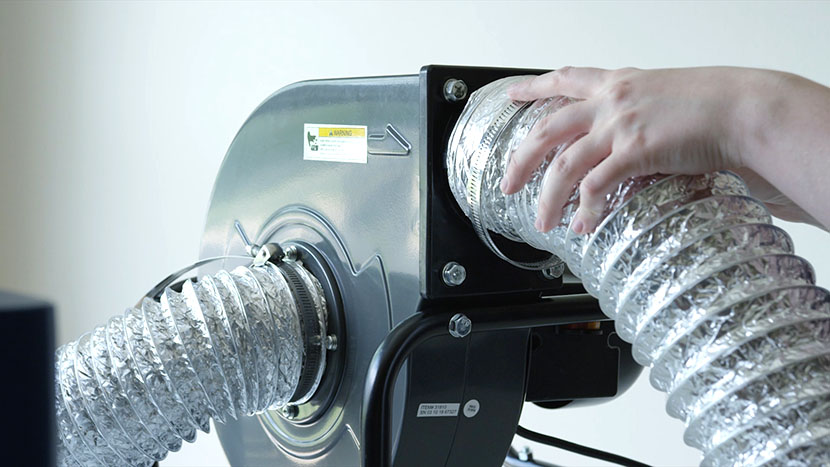

Next, connect another exhaust hose to the out-take port of the blower and the other end to a wall vent or window.
Exhaust Option 2: Filtration System
Another option is to hook up your Zing laser to an internal filtration system.

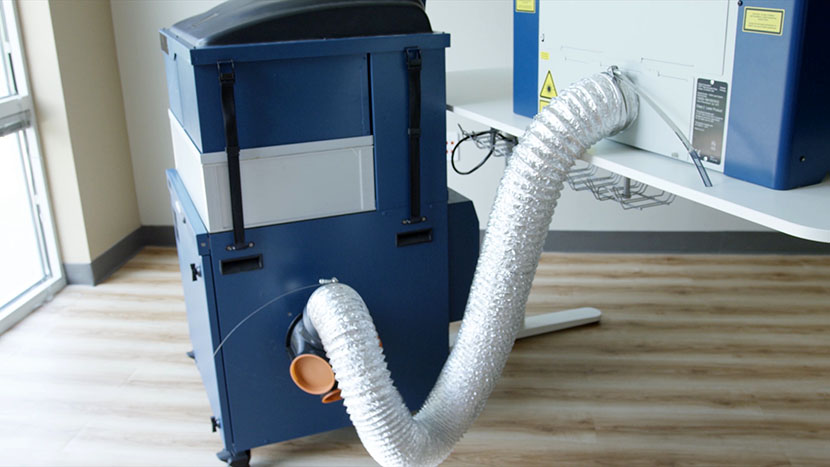

These systems also have a simple set up, requiring only one exhaust hose to be connected from the machine to the filtration unit. Required exhaust flow rates for filtration systems are lower than the 350 CFM we require for external exhaust, because the filtration system will be placed directly adjacent to the laser system and does not exhibit the air-flow losses typically found with direct exhaust fans. Please contact your Epilog distributor to match an exhaust system to the Epilog Laser machine you are using.

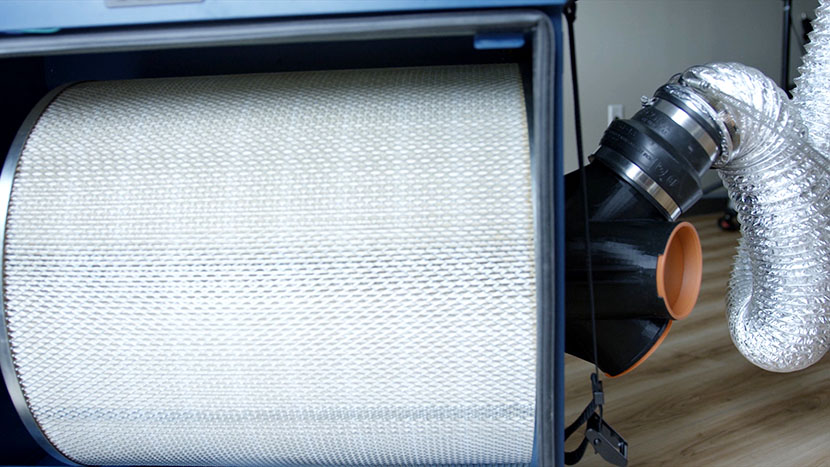

These systems are ideal if you cannot run an exhaust line to the roof, or are looking to travel with the laser. The units typically use a HEPA/Carbon Charcoal filter to remove odor and smoke. There are several manufacturers of these types of filters that your distributor can help you choose between.
Exhaust Option 3: Outdoor Exhaust Unit

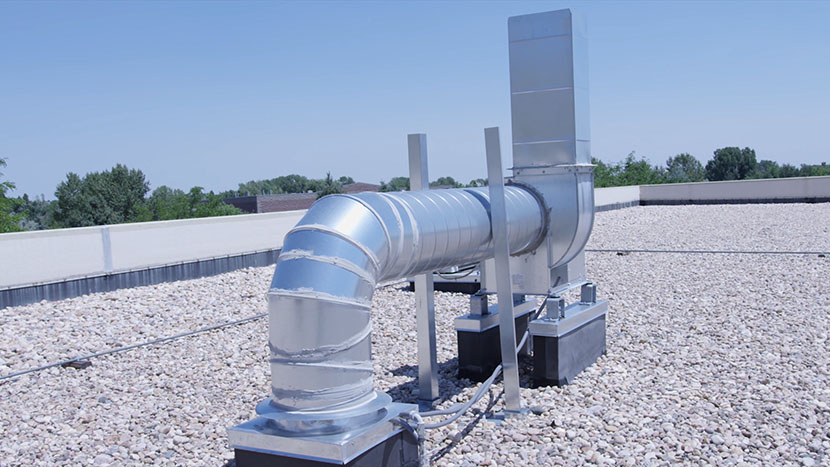

The ideal setup for the exhaust of a laser system in an office environment is to have an exhaust pipe mounted against the wall, which is then connects to a motor blower on the outside of the building to ventilate outdoors.

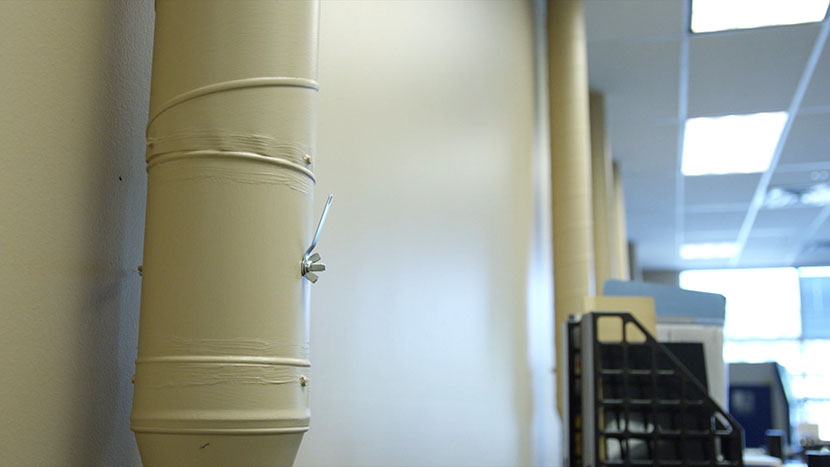

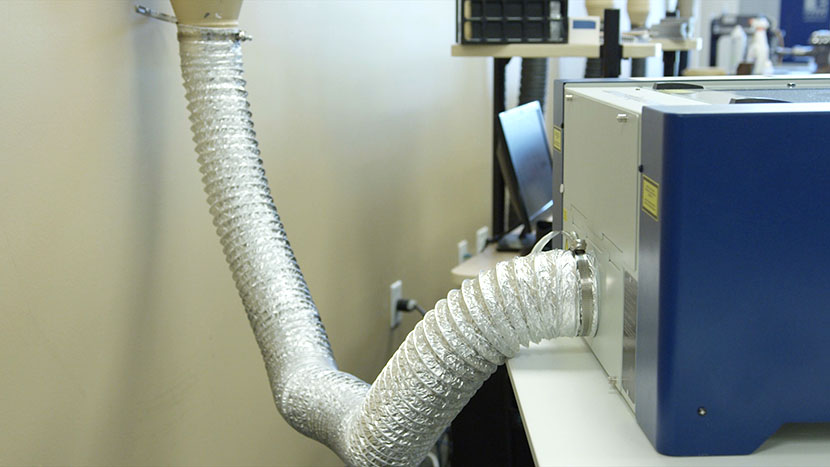

Flexible metal piping connects to the exhaust port on the back of the laser. The flexible portion of the tubing should be kept as short as possible to reduce air turbulence and to increase the air flow. Above the flexible tubing, we connect to a galvanized steel straight pipe. Your local HVAC professional can help you with setting this up.

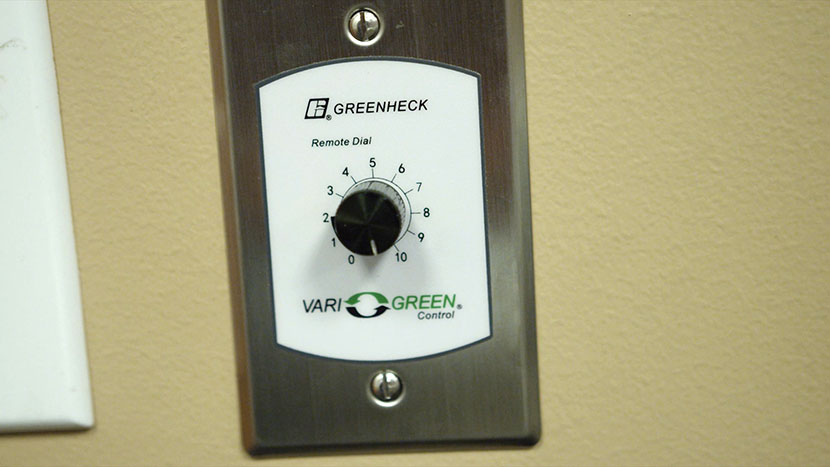

We suggest putting the exhaust blower outside with an electrical switch near the machine to turn on and off the blower. This provides you with the quietest, most efficient operation.
Things to Keep in Mind
It’s always good to start by consulting with your local HVAC professional to see what is ideal for your specific situation. The Zing requires 350-400 CFM for external exhaust.
It’s important that either rigid or flexible metal ducting be used with the laser. Vinyl, plastic or other soft ducting is potentially flammable and should not be used unless provided by the filtration system manufacturer and made from fire-proof materials.
