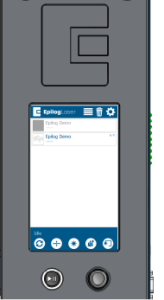

The control module on Epilog laser systems provides connection points and LED indicators that offer system status and control feedback. This guide outlines each port and indicator located on the right side of the machine.

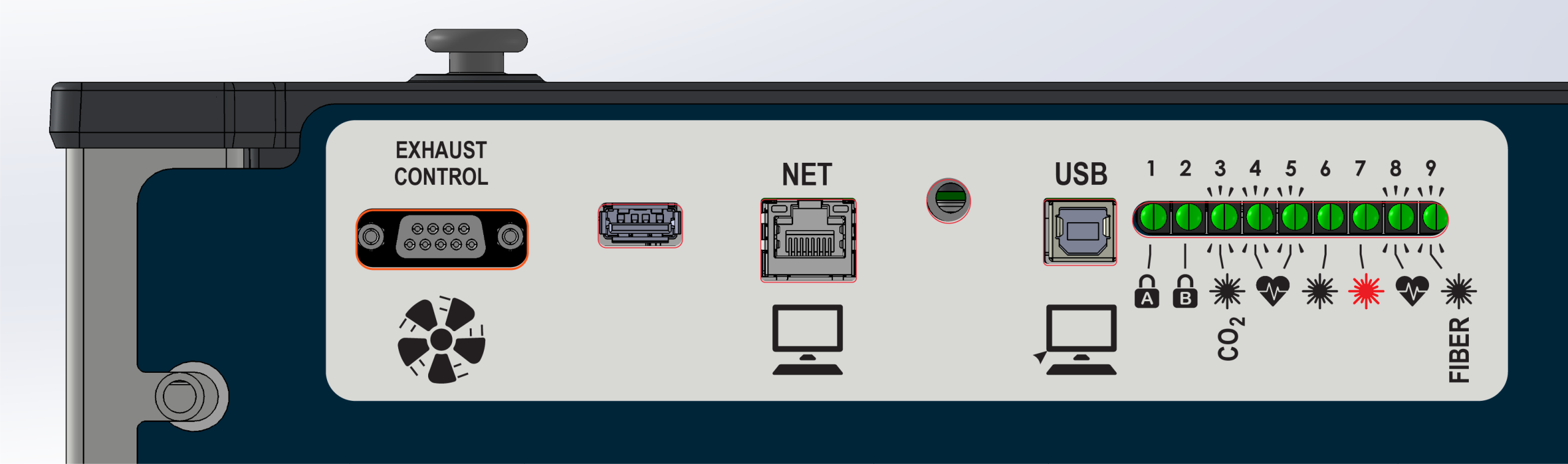

Port Descriptions
-
Exhaust Control: Connects to a compatible exhaust unit to send on/off commands.
-
USB Type-A: Used to update the firmware in the engraver.
-
Net: Connects the engraver to a computer via Ethernet (direct or networked).
-
USB Type-B: Used to connect the engraver to a computer via USB cable.
LED Indicators
-
1 – Interlock A: On when lid/door is shut; off when open.
-
2 – Interlock B: On when lid/door is shut; off when open.
-
3 – CO₂ Laser Control: On when the CO₂ laser is commanded to fire.
-
4 – Heartbeat: Blinks when the touchpad UI is active.
-
5 – Heartbeat: Blinks when the FPGA is active.
-
6 – CO₂ Laser Signal: On when receiving feedback from the installed CO₂ laser.
-
7 – Red Dot Pointer: On when the red dot pointer is enabled.
-
8 – Heartbeat: Blinks when motion control processor is active.
-
9 – Fiber: On when the fiber laser is commanded to fire.

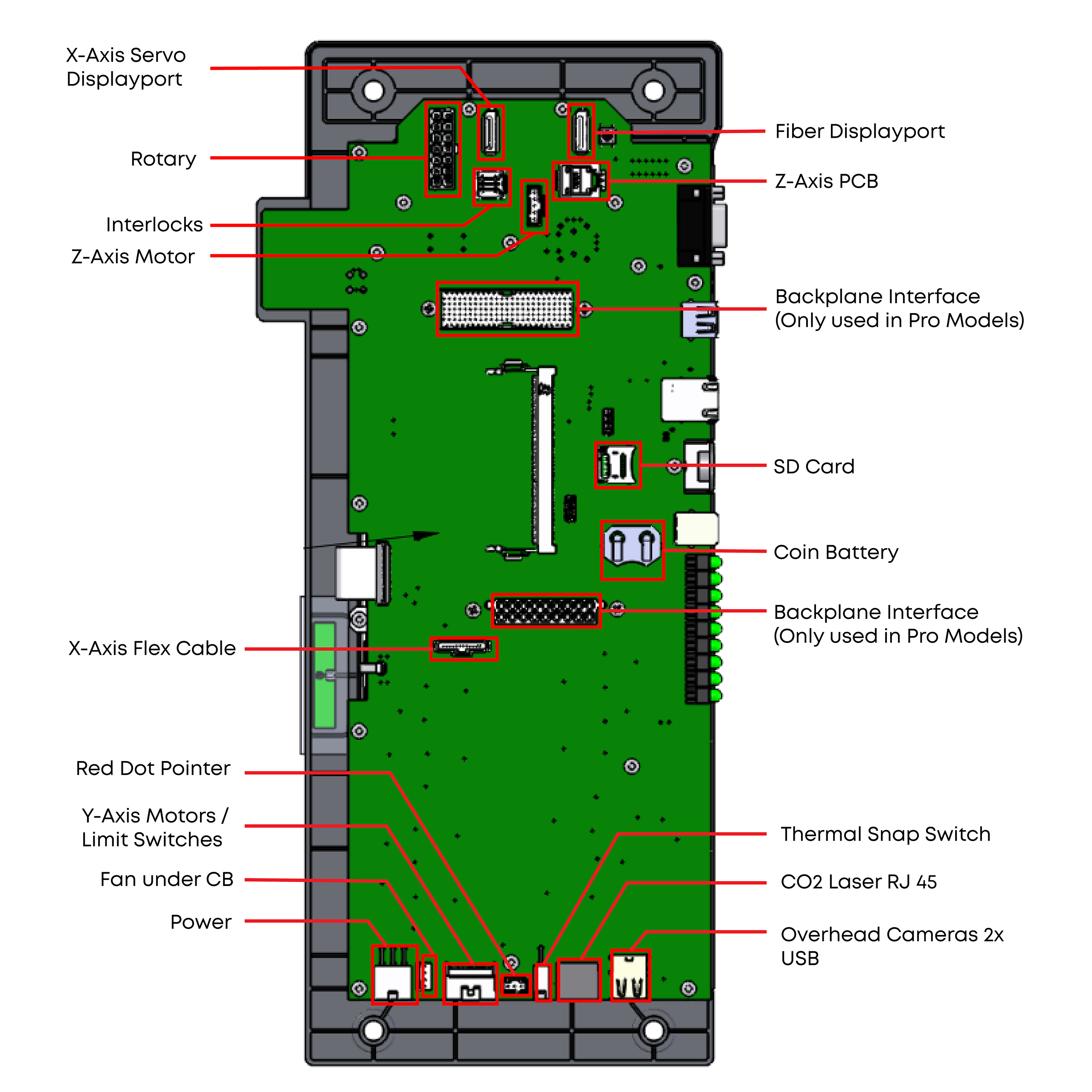

Board Components and Connections
