In this lesson we’ll walk you through unpacking the Fusion M2 laser system.
Open the Box

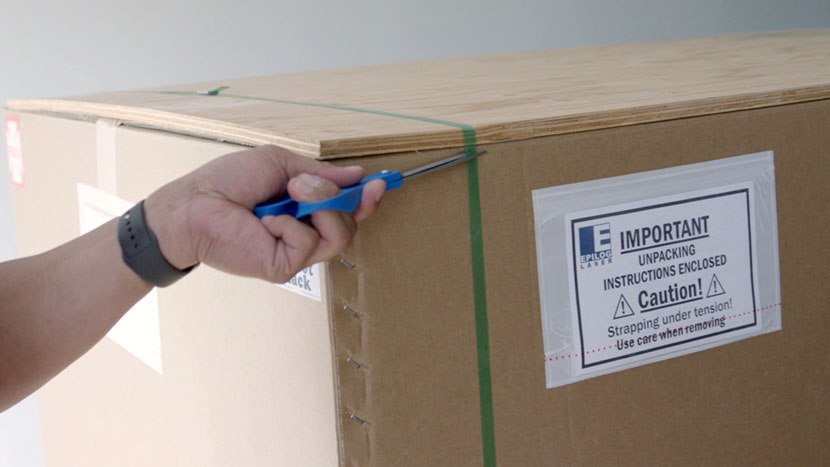

Start by using scissors or a utility knife to cut the box straps. Stand clear of the straps, as they are under high tension and may pop out at high speed when cut.
Remove the straps and the wooden box topper. Then lift and remove the cardboard box.

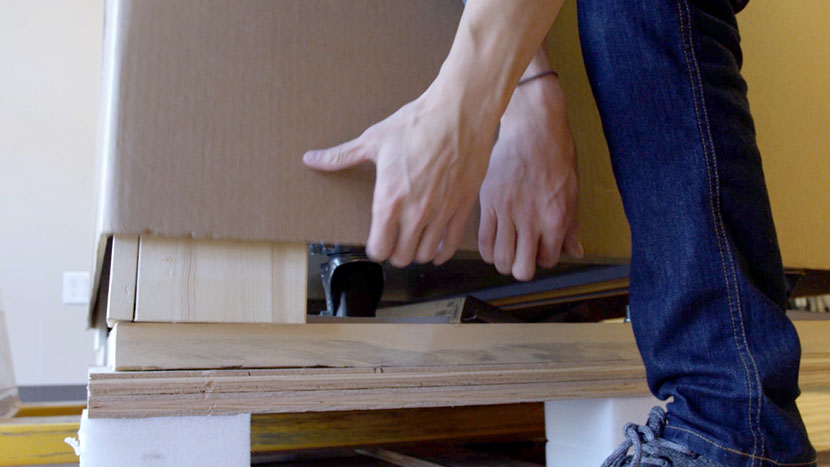

Note: As you’re removing the Fusion M2 box, be sure to pull out the foam and wood corner braces before taking the box all the way off the Fusion M2.
Remove the plastic bag.
Set up the Ramps

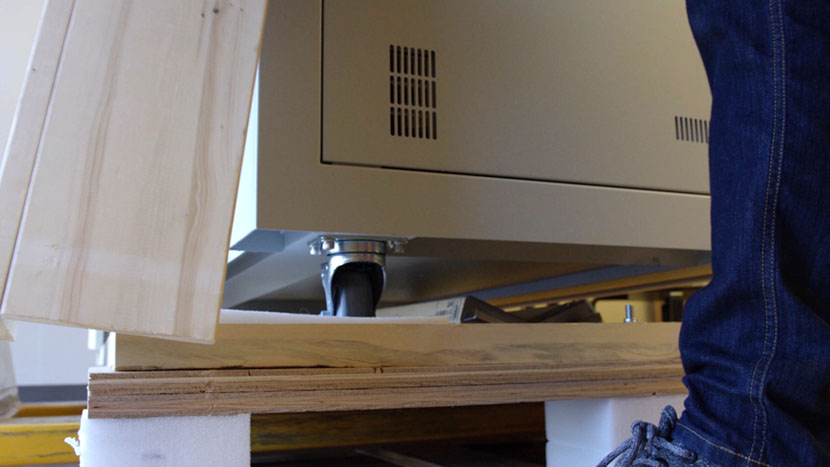

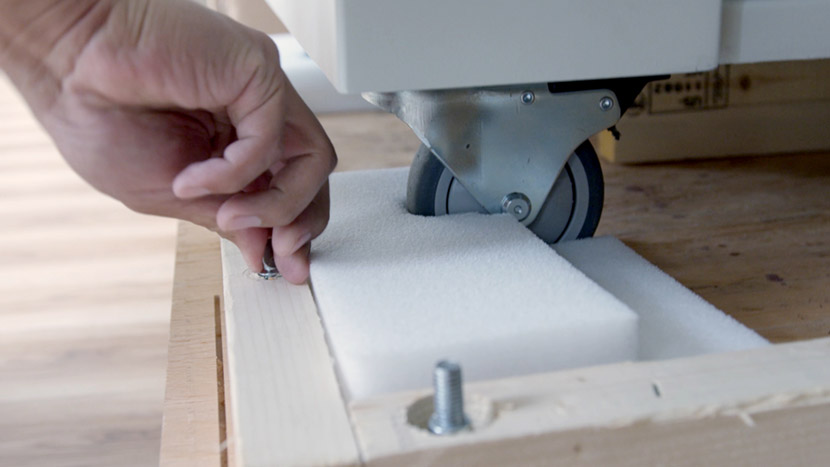

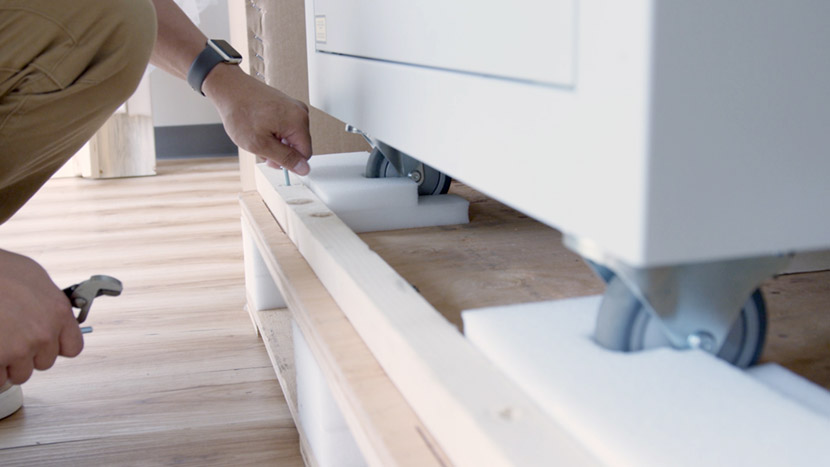

Unscrew and remove the raised wooden edge located on one side of the pallet.

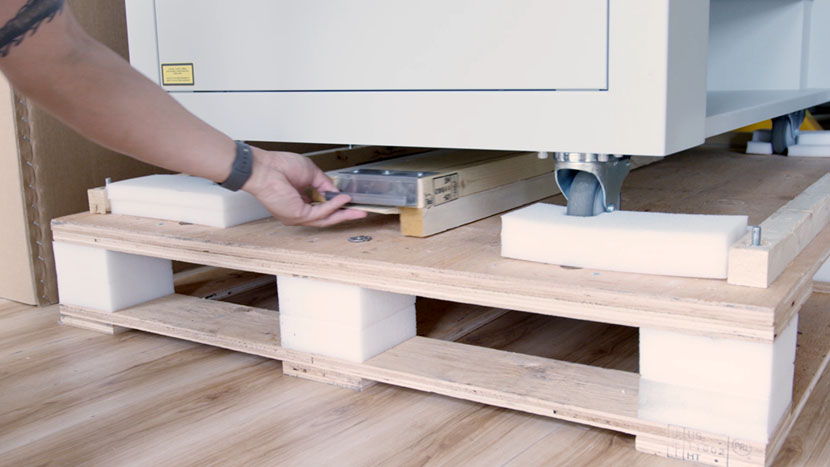

Remove the wheel ramps from underneath the machine.

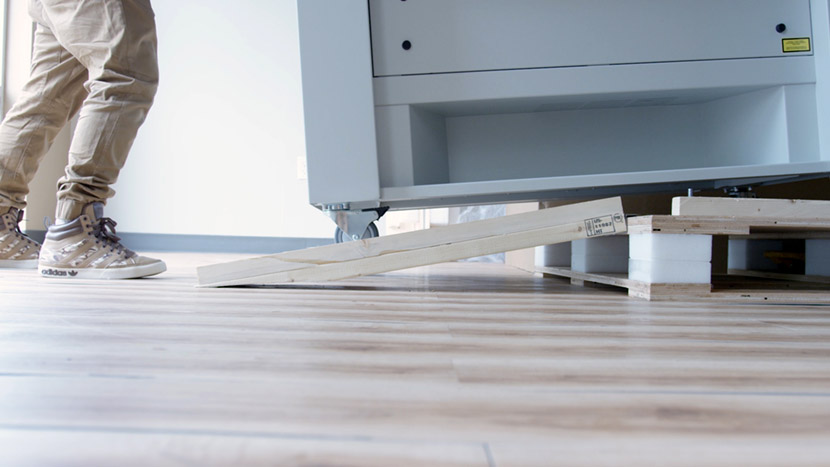

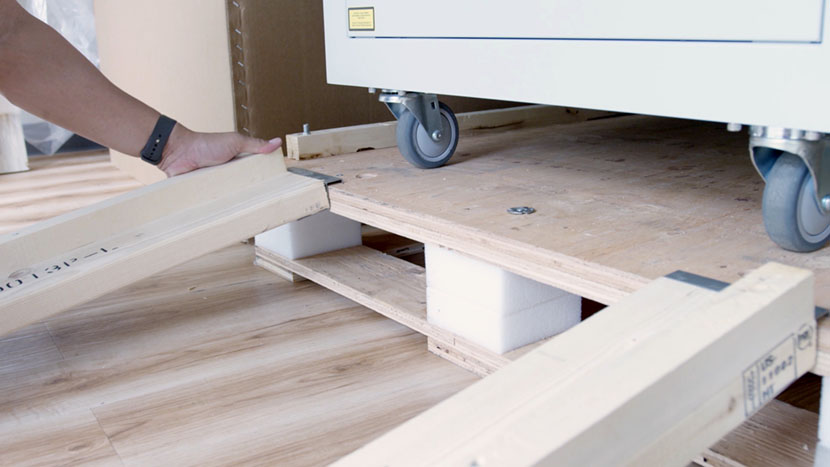

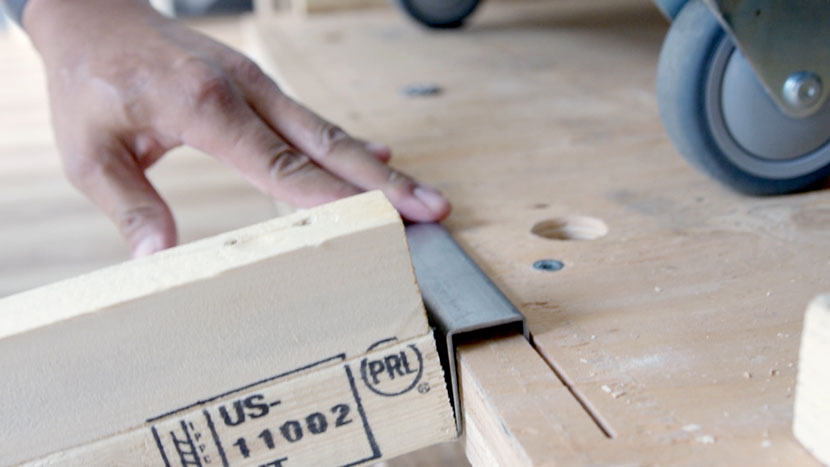

Affix the ramps to the side of the pallet by inserting the metal edges into the slits located where the wooden edge used to be. Make sure the ramps are aligned with the wheels.
Remove the Machine

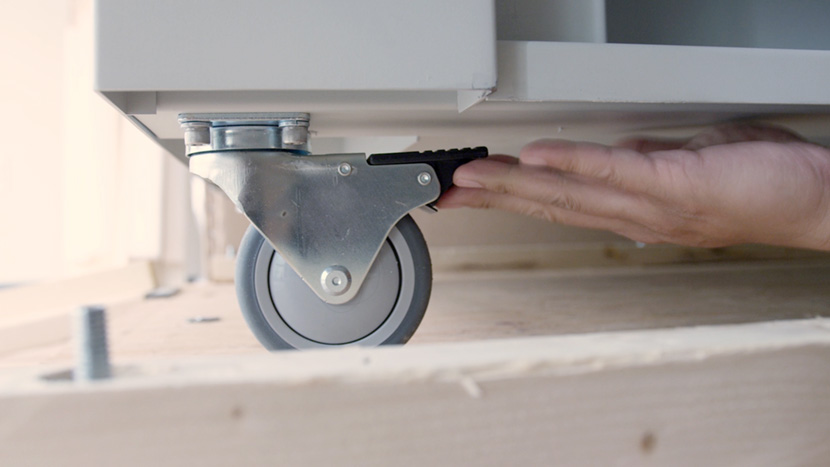

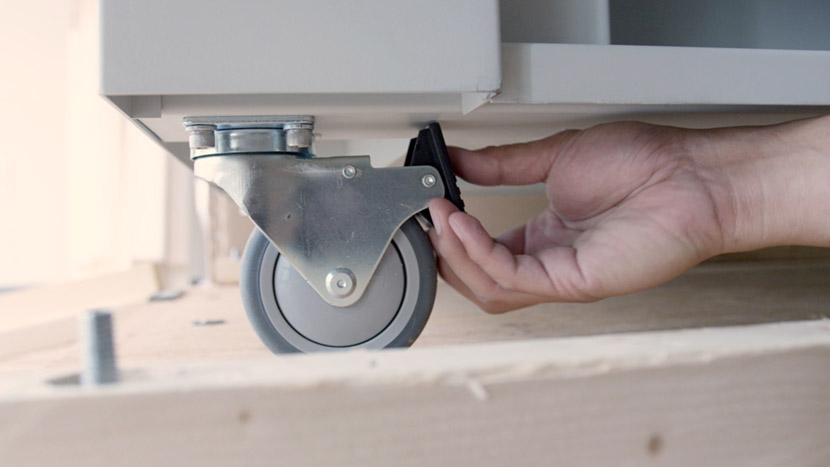

Unlock the two wheels at the front of the machine.
The Fusion M2 32 and 40 systems range in weight from 500 to 679 lbs. so you may need the help of an additional person when pulling the Fusion off the pallet and down the ramps.
Slowly wheel the Fusion M2 off the pallet and down the ramps, taking care to make sure the wheels stay on the ramps. Be sure to pull the machine, not push.
Make sure not to discard the packaging material at this time.
Included Items and Materials

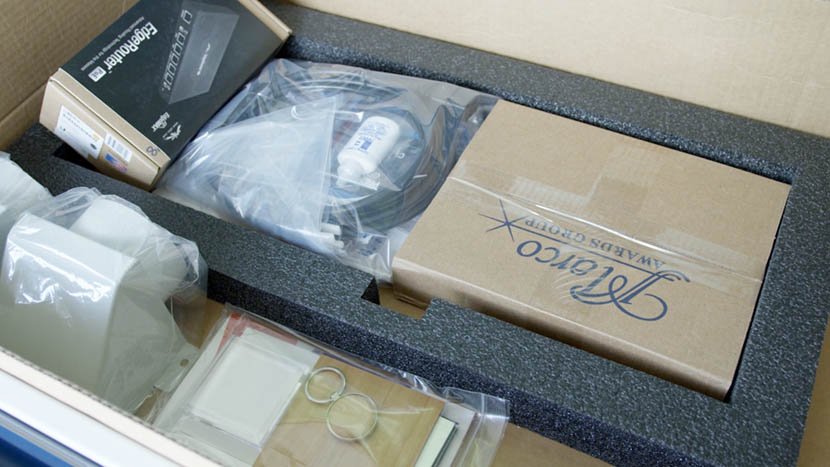

Open your Fusion M2 laser system’s top door, and remove the included items from the cabinet, then open the box of included items.
Your Fusion M2 laser system includes:
- Manual Focus Gauge (two if you have a dual source)
- Power cord
- Ethernet cord
- USB cord
- Exhaust Plenum connectors
- Driver Install CD
- Quick Start Guide
- Owner’s Manual
- Training Site Signup Card & Kit
- Laser Beam Alignment Target
- Lens Cleaner
- Bearing Lubrication Grease
- Vendor Material Sample Kit
