In this lesson we'll walk you through unpacking the Epilog Fusion Pro 48 laser system.
Please be sure to hold on to all packing materials and crating in case you need to move the system in the future.
Open the Crate

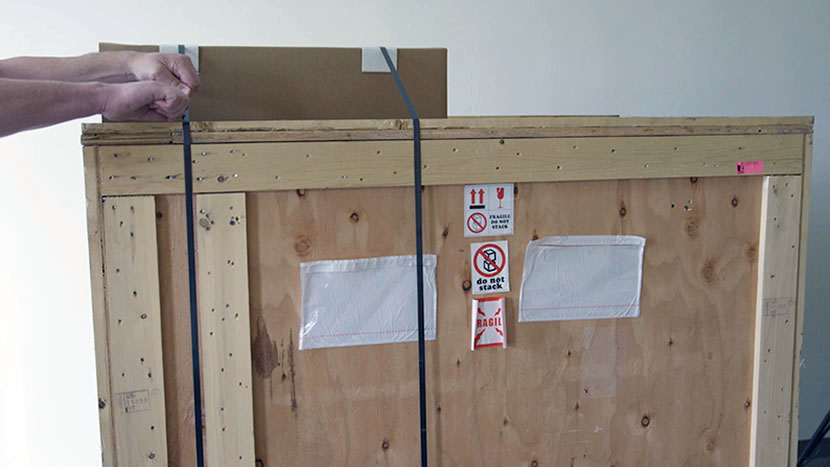

Start by using scissors or a utility knife to cut the box straps. Stand clear of the straps, as they are under high tension and may pop out at high speed when cut.

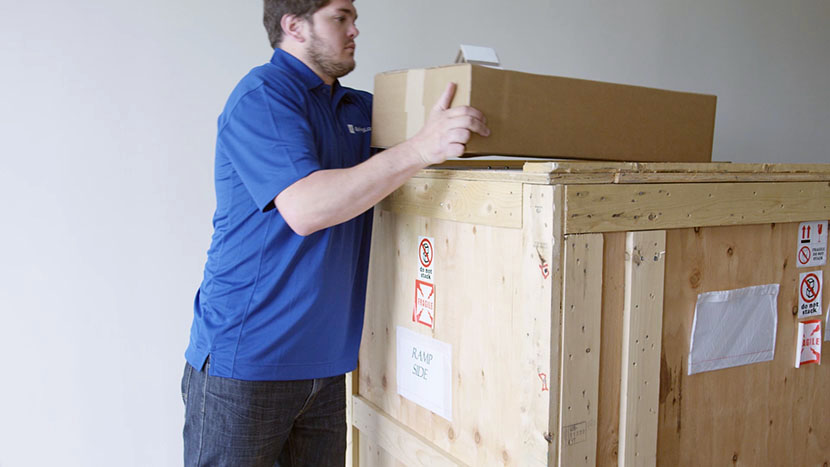

Remove the accessories box sitting on top of the crate and set it to the side.

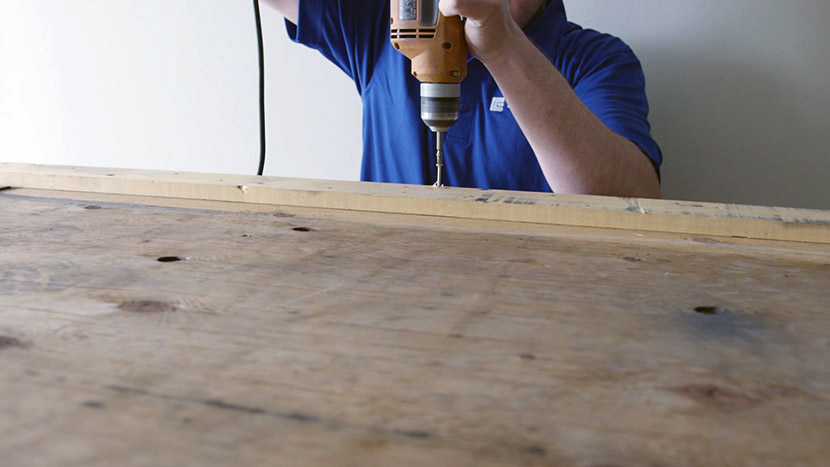

Remove the screws securing the top lid using a screwdriver or a drill.

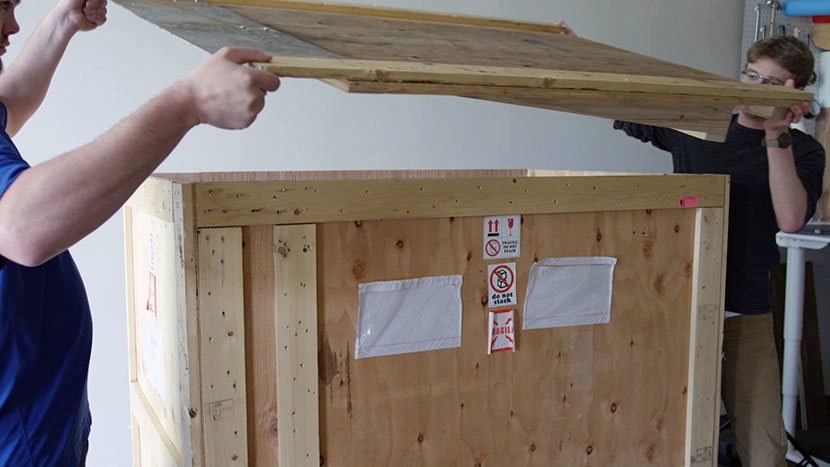

Remove the top lid and set it to the side.

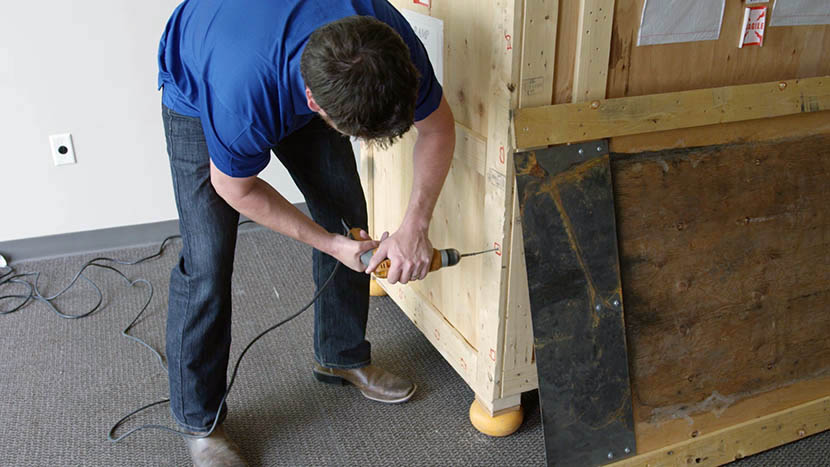

Remove the screws securing the front panel.

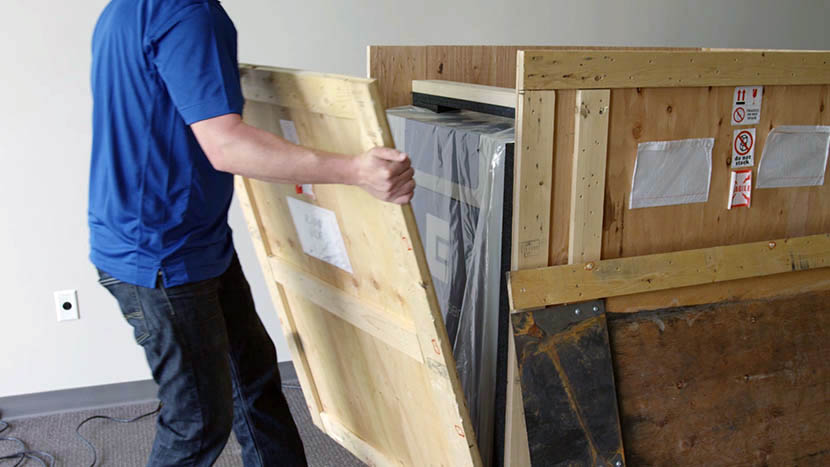

Slide the front panel out of the box.

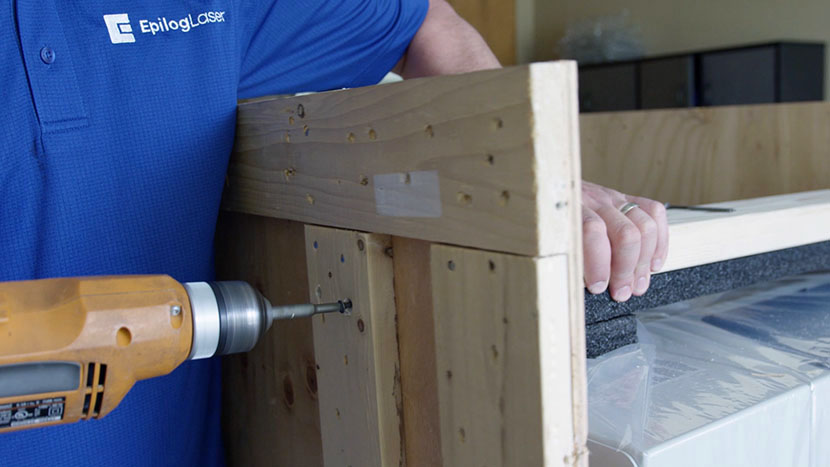

Remove the outer screws holding up the two braces on top of the machine.

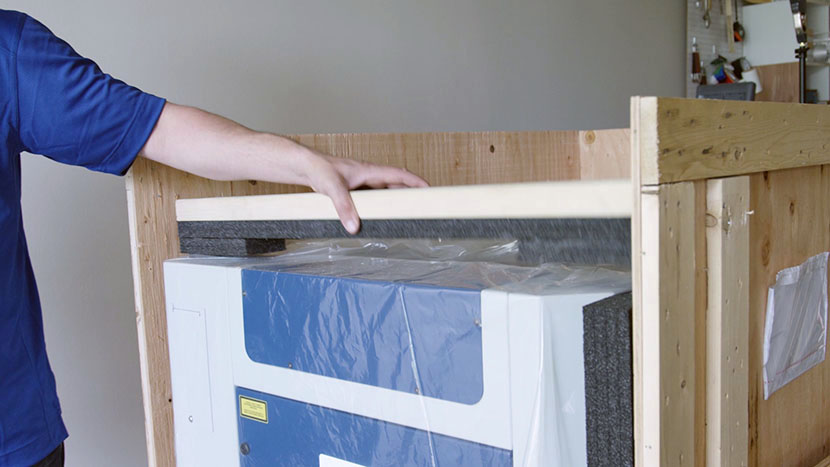

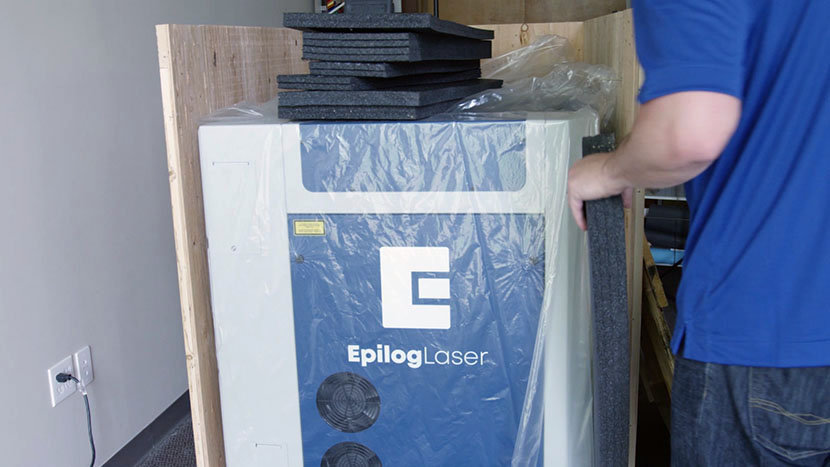

Remove the braces as well as any foam pieces around the machine.

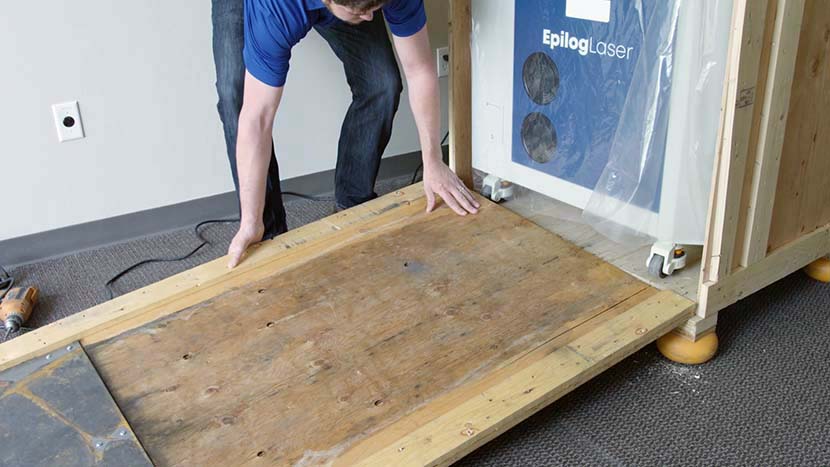

Next, take the top panel you removed at the beginning and align its corners with the ledge on the bottom of the box, making a ramp.

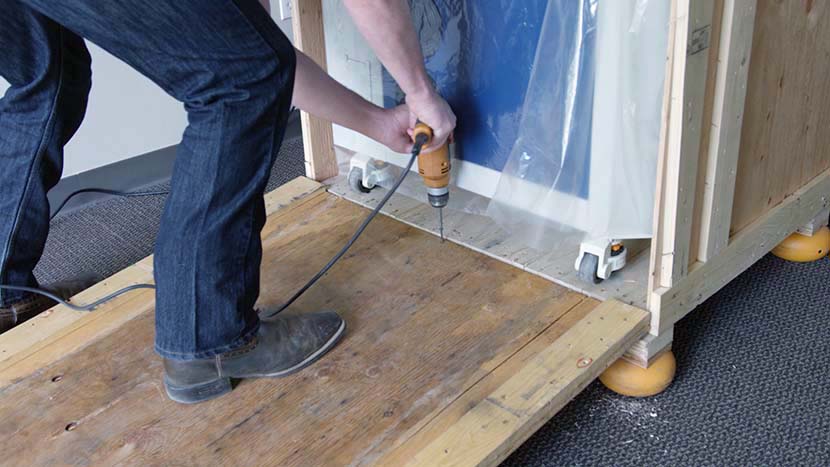

Secure the ramp with a screw.
Remove the Machine

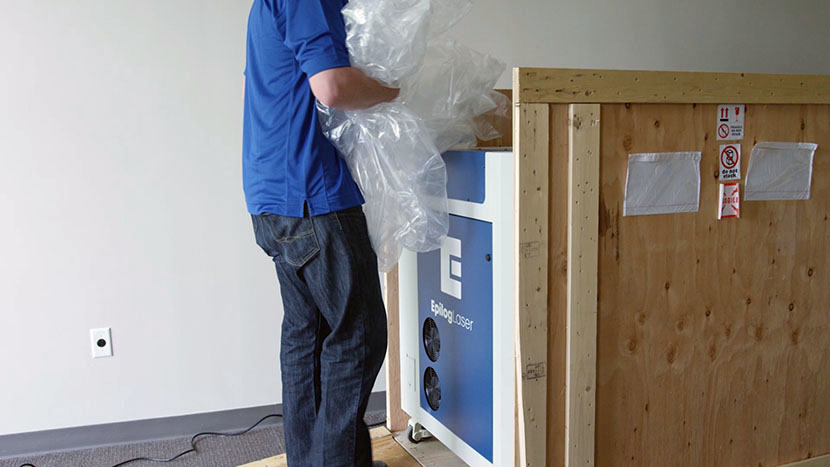

Remove the plastic cover from the machine.
The Fusion Pro 32 and 48 systems range in weight from 400 lbs (182 kg) to 650 lbs (295 kg). You may need the help of an additional person when pulling the Fusion Pro off the pallet and down the ramps.

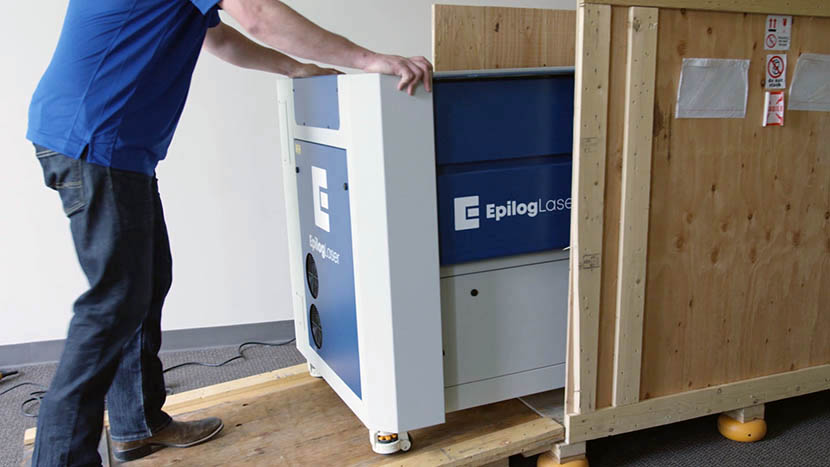

Roll the machine down the ramp slowly and carefully until it is out of the box and on level ground.

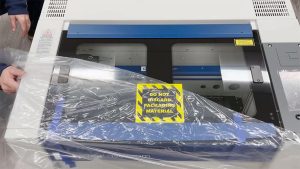

Again, be sure to save the packaging material so you can use it when moving the system in the future.
Included Items and Materials
Next, open the accessories box and we’ll look at the included items.
Your Fusion Pro laser system includes:
- Power cord
- Ethernet cord
- USB cord
- Exhaust and Vacuum Table Plenum Connectors
- Driver Install CD
- Quick Start Guide
- Owner’s Manual
- Training Suite Signup Card
- Laser Beam Alignment Target
- Lens Cleaner
- Bearing Lubrication Grease
- Camera Calibration Mat
- Vendor Material Sample Kit, and
- A Quick Start Guide
