In this lesson we’ll walk through cleaning and greasing the Epilog Fusion M2’s Bearing Rail.

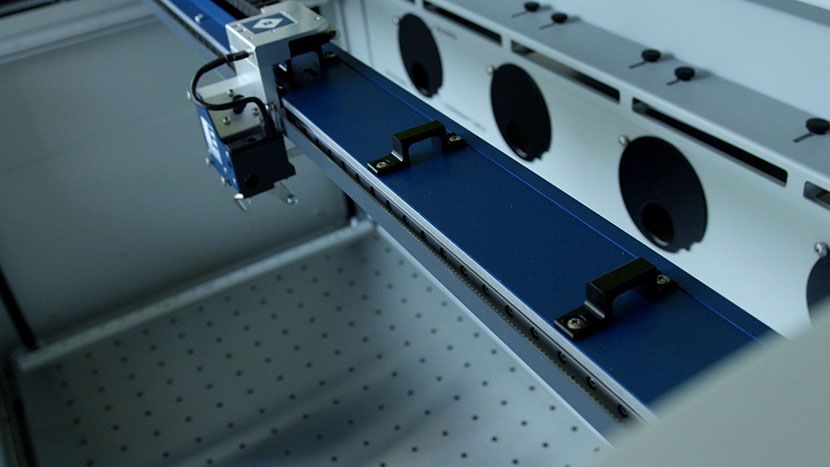

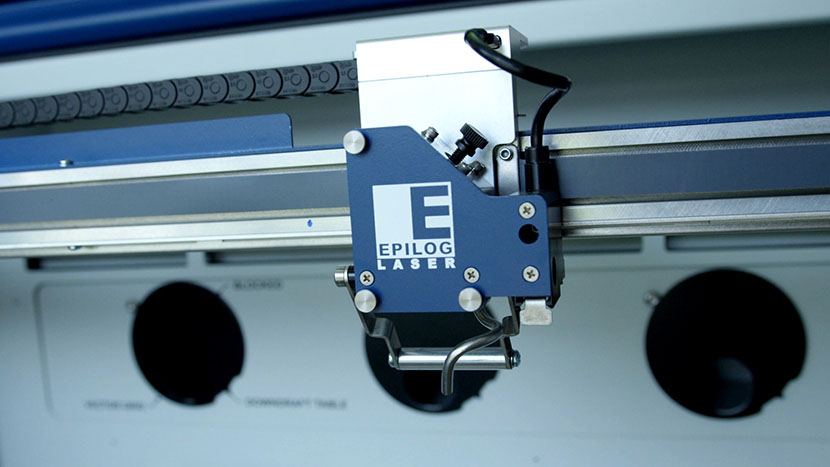

The Epilog Fusion M2’s bearing rail runs the length of the x-axis assembly and can be found behind the x-axis belt. It supports the lens assembly, which glides along it while the machine is in operation. Keeping the bearing rail clean and greased ensures smooth motion and high-quality results.

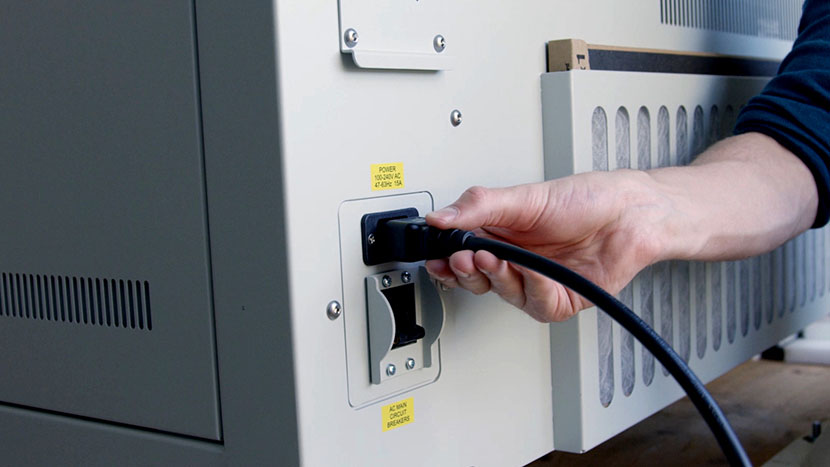

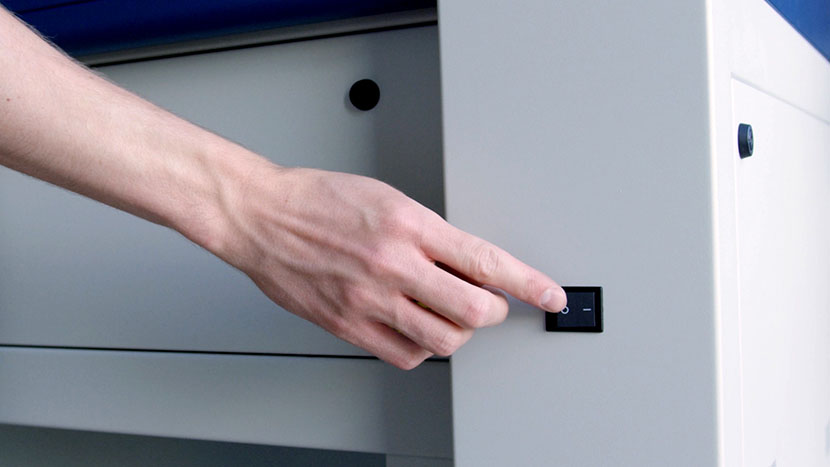

To begin the procedure of cleaning and greasing the bearing rails, shut off the laser and remove the power cord from the machine.
Clean the Bearing Rails

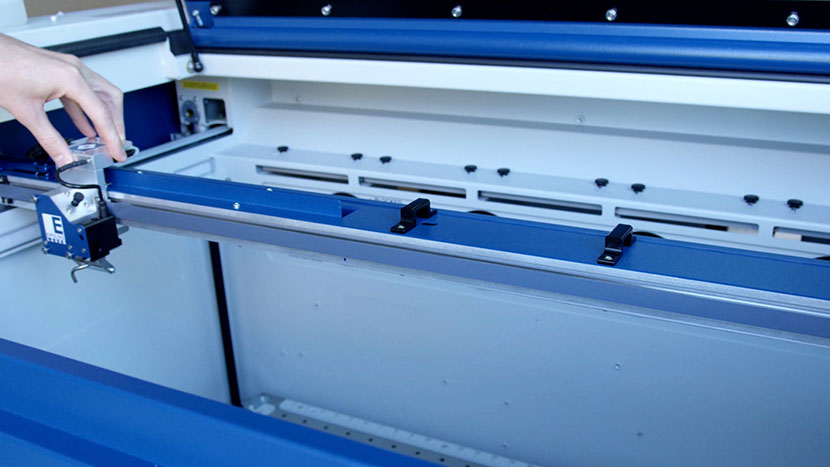

Manually position the lens assembly to one side.
Apply rubbing alcohol to a cotton swab.

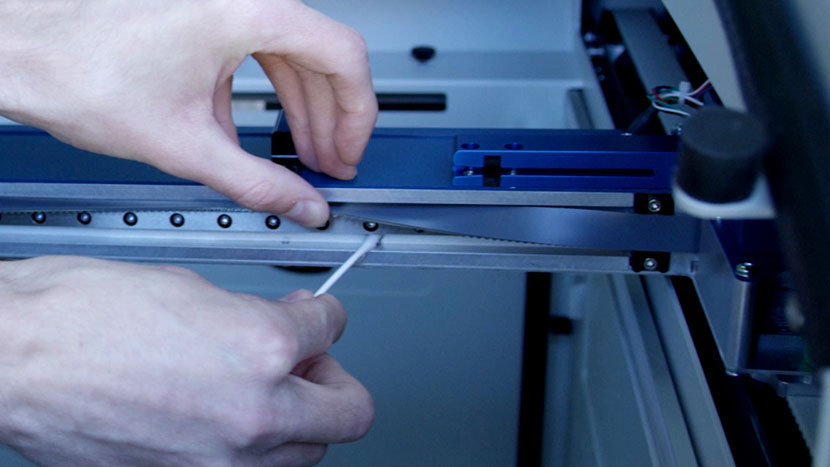

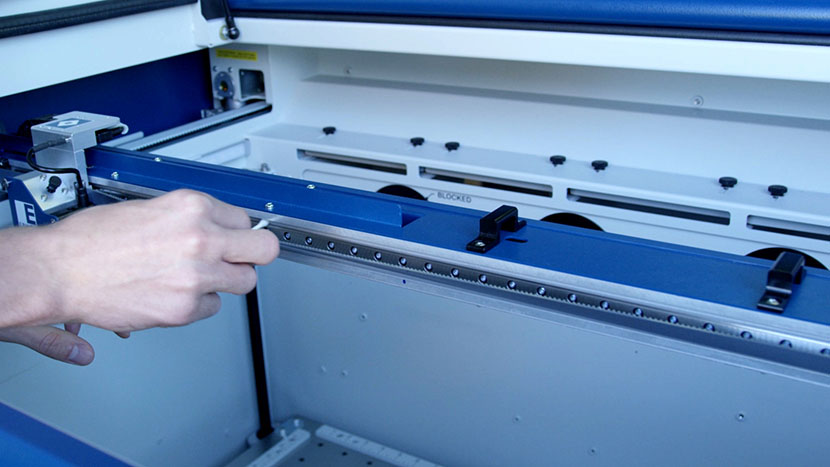

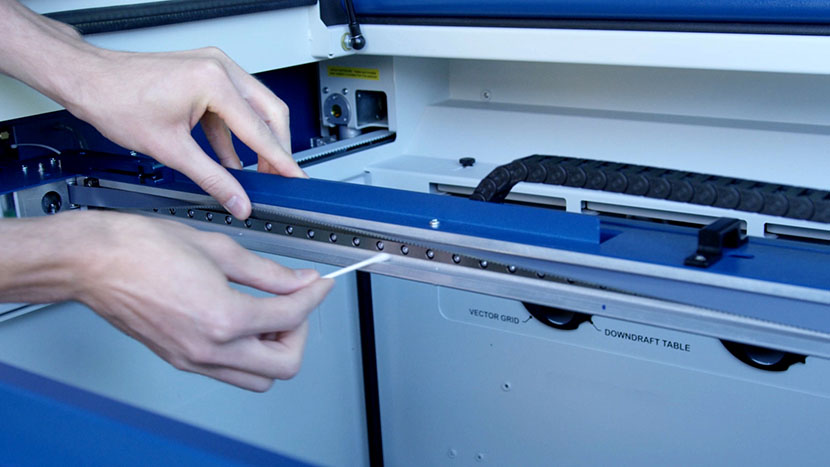

Clean one end of the bearing rail by running the cotton swab along the top and bottom of the rail. Repeat this process until the cotton swab comes away clean, using new cotton swabs when the old ones become dirty.

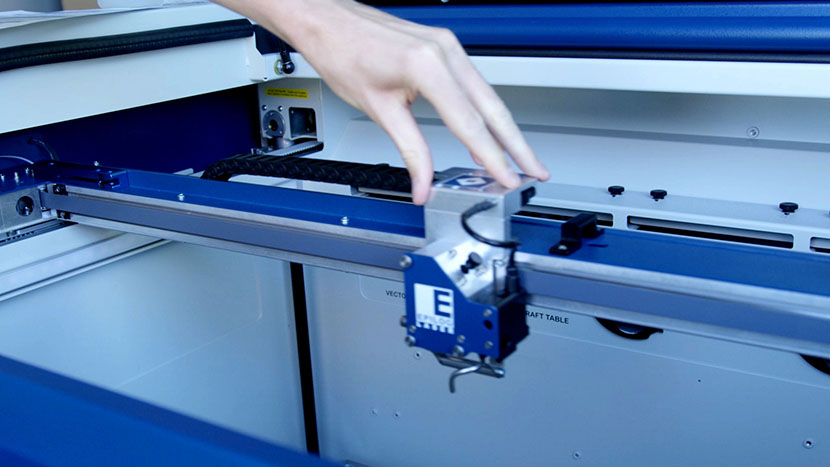

Move the lens assembly along the x-axis toward the end of the bearing rail you just cleaned.
Apply rubbing alcohol to another cotton swab.

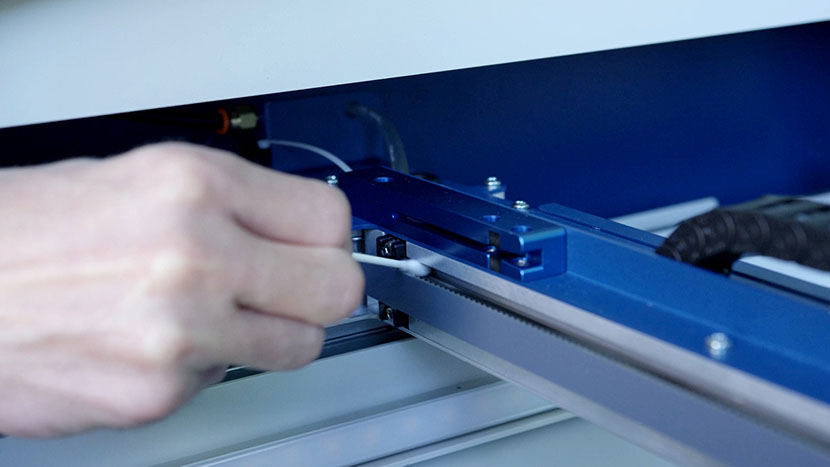

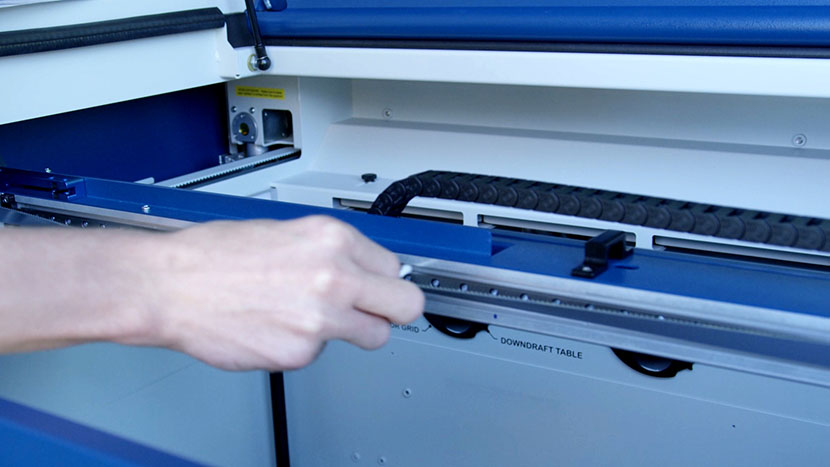

On the remaining, uncleaned portion of the bearing rail, run the cotton swab along the top and bottom of the rail, repeating until the cotton swabs come away clean.
Grease the Bearing Rails

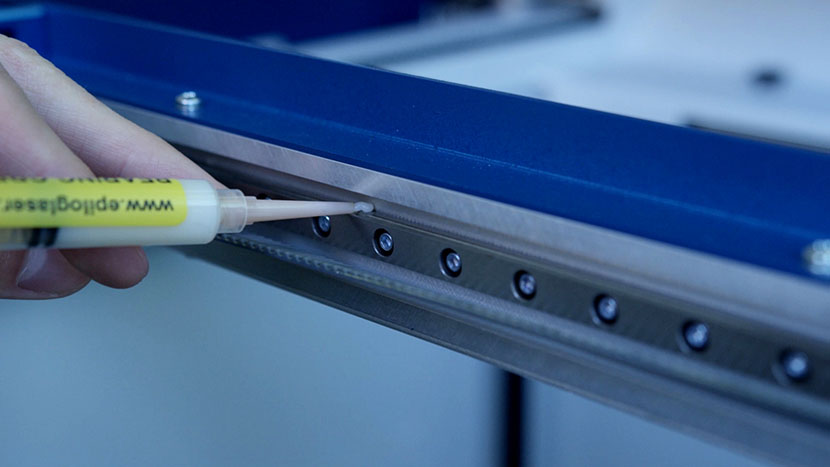

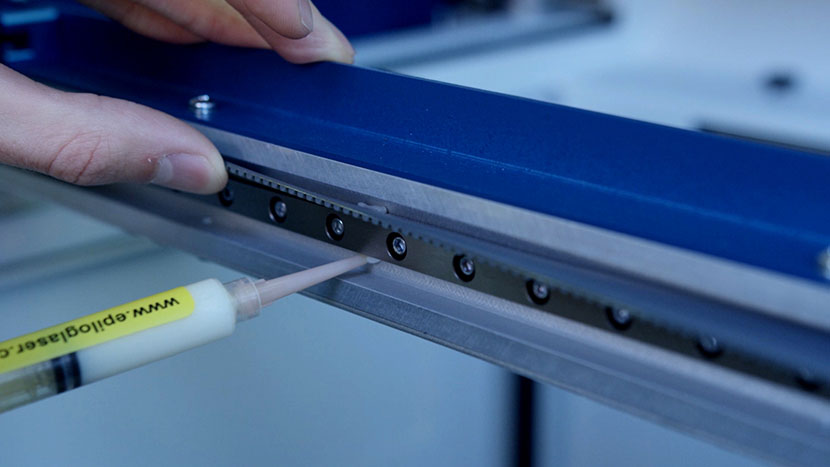

Next, apply a small amount of bearing grease to one spot on the top and bottom of the bearing rail.

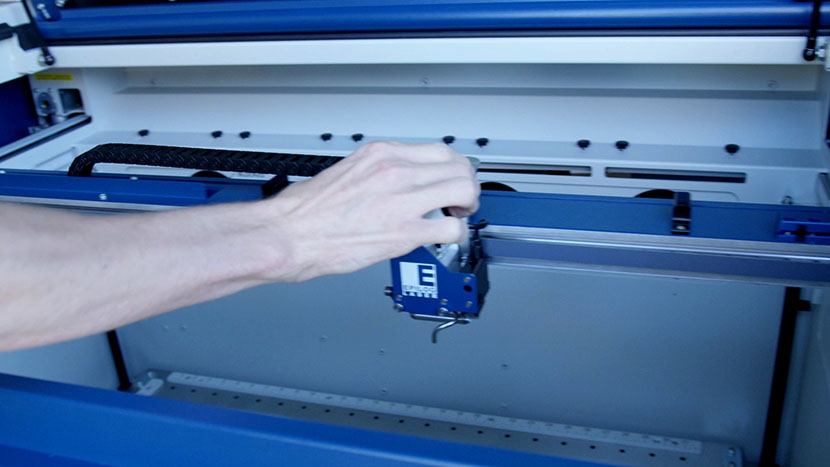

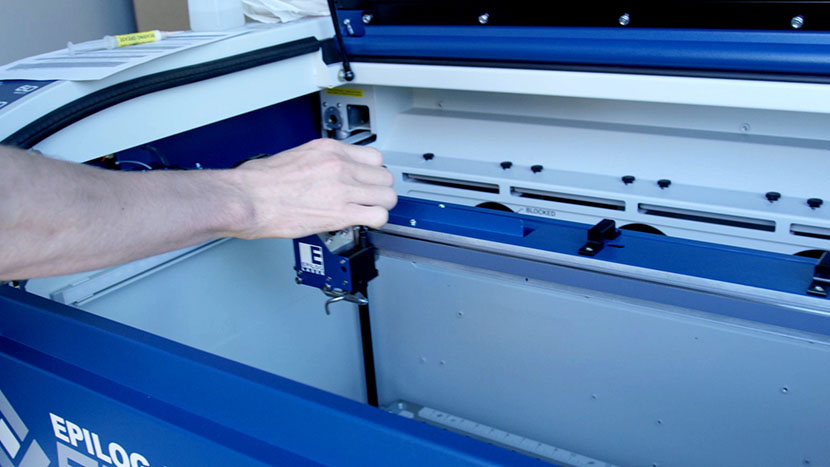

Slowly move the lens assembly left and right along the length of the bearing rail at least several times to spread the grease evenly across the assembly’s path.
Be sure to wipe away any excess grease that builds up at either end of the rail. Excess lubricant can more easily attract debris and cause premature wear when it works its way into the bearings.

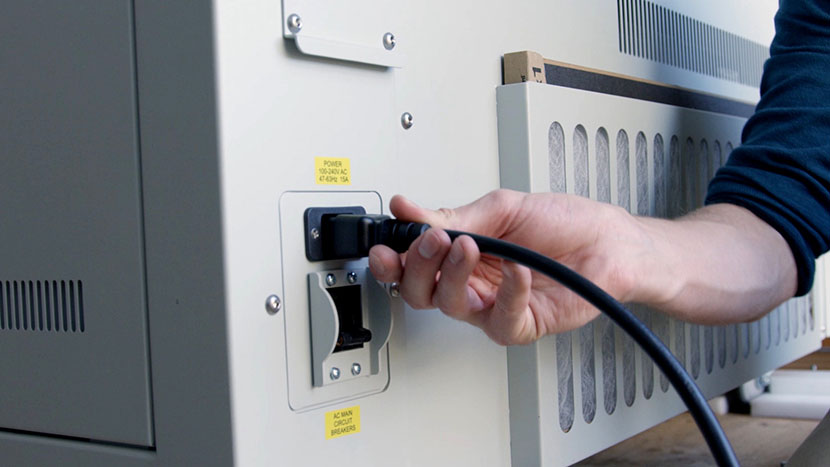

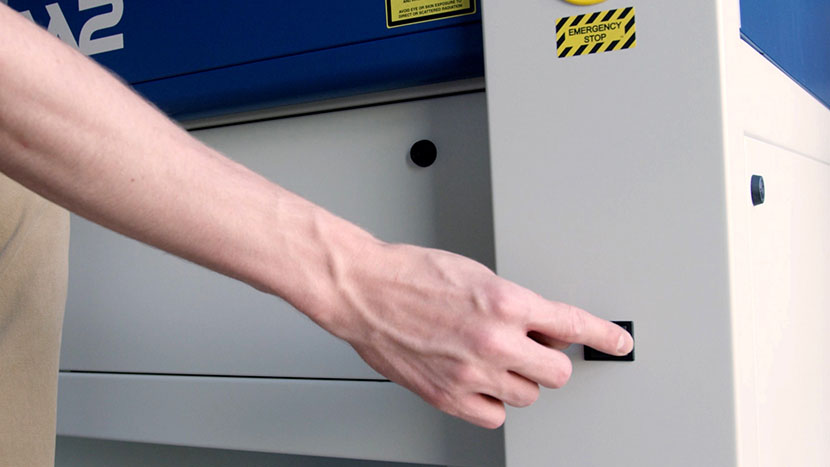

Plug the machine in and turn it on.
