X-Axis Motor Replacement (Large Aperture)

This guide provides step-by-step instructions for removing and installing the X-Axis motor and reducer belt in a large-aperture Fusion Pro laser system. Follow each step carefully to ensure a safe and efficient procedure. Always disconnect power before beginning any maintenance.

Removal

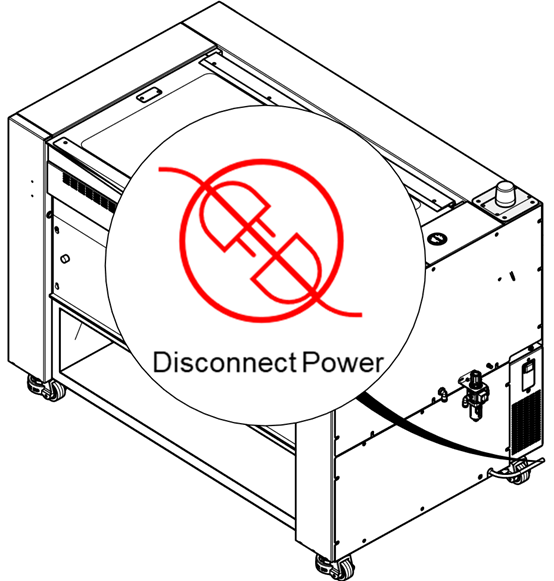

1. Power off the machine and disconnect the power cable.

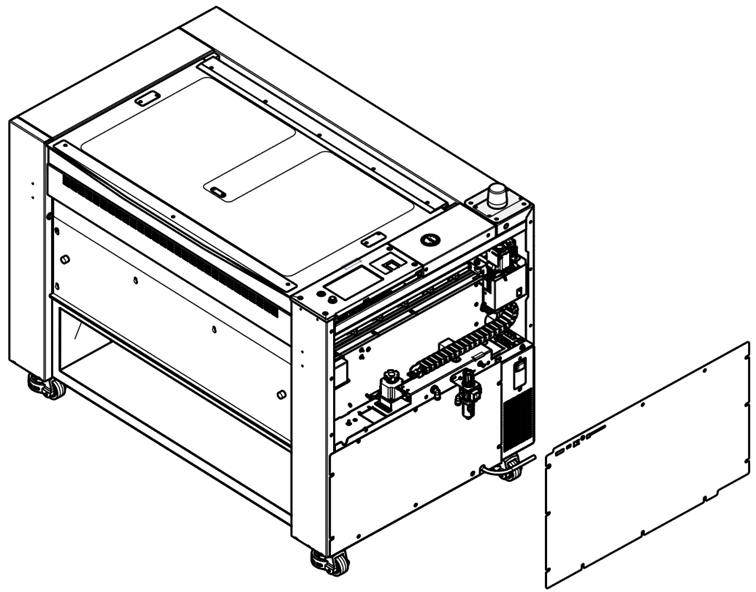

2. Remove the right side panel.

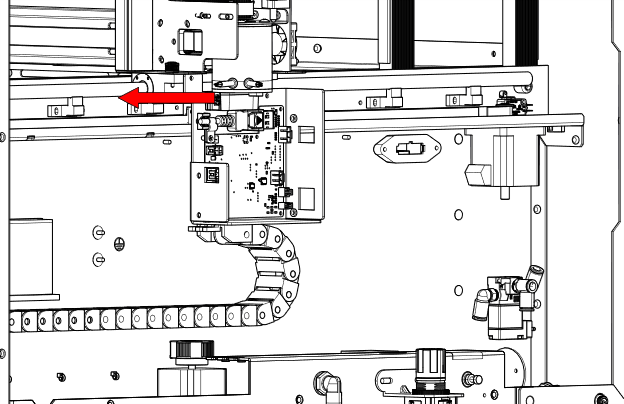

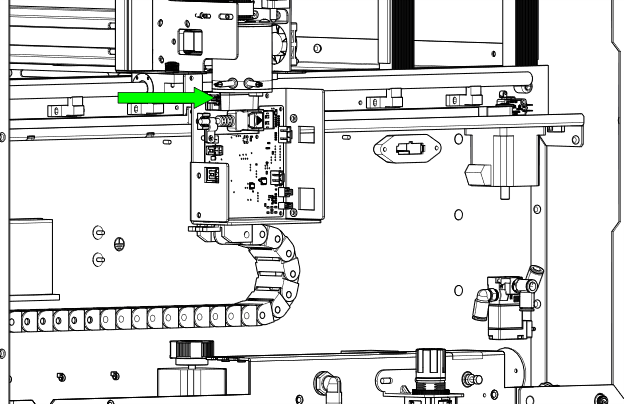

3. Move the X-Axis rail to the center of the machine.

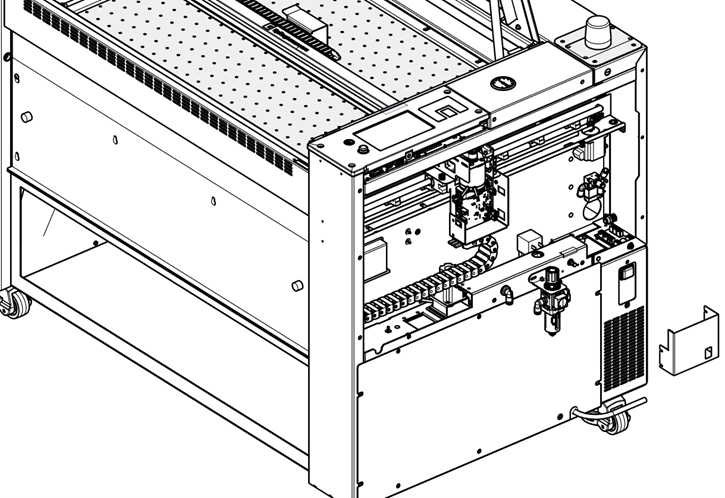

4. Remove the X-Axis drive board cover.

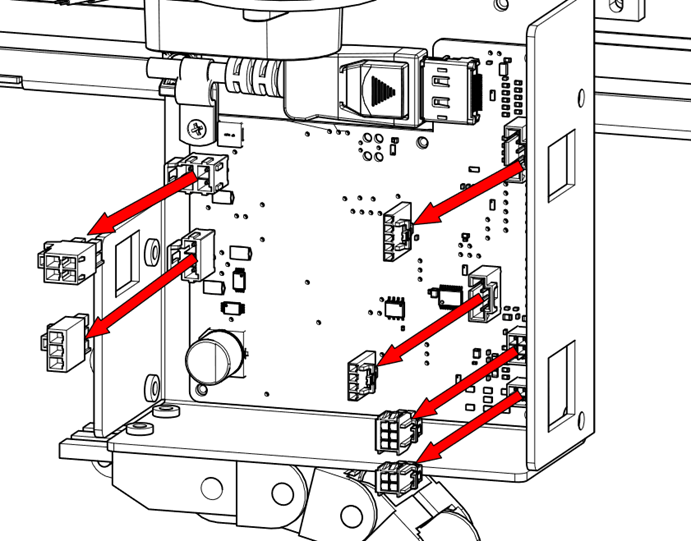

5. Disconnect the electrical harnesses from the X-Axis drive board and motor.

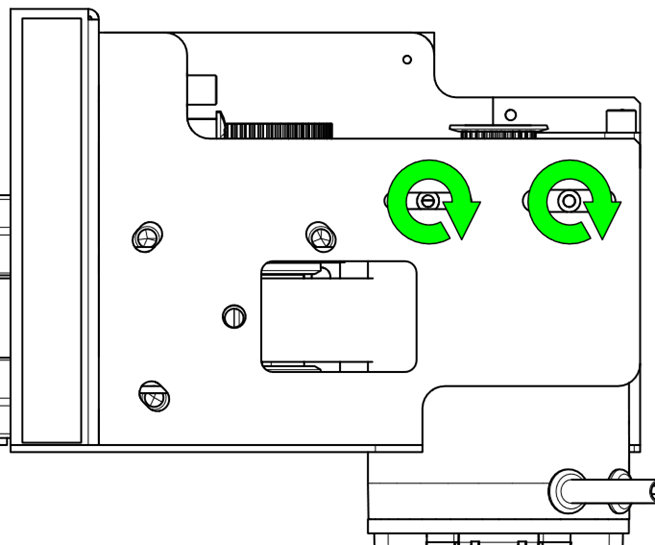

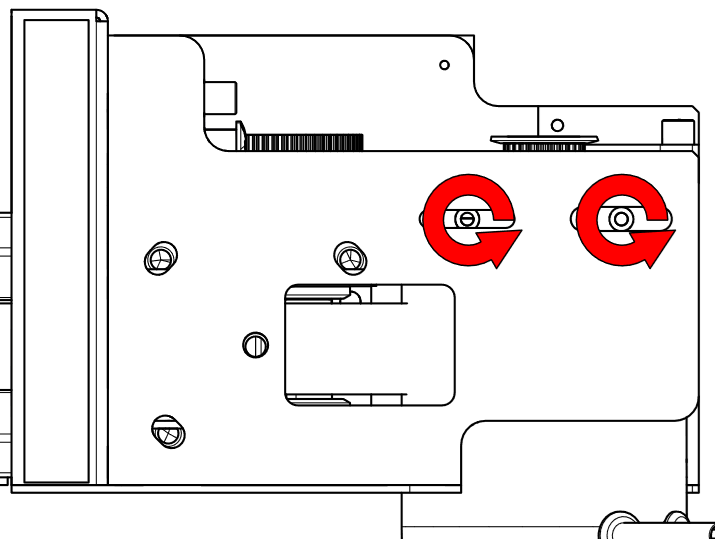

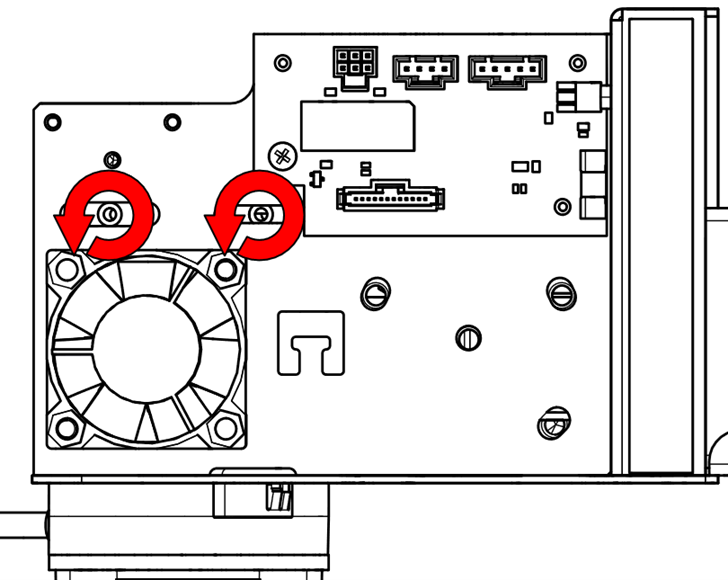

6. Loosen the motor mounting screws.




7. Loosen the motor tensioner screw.

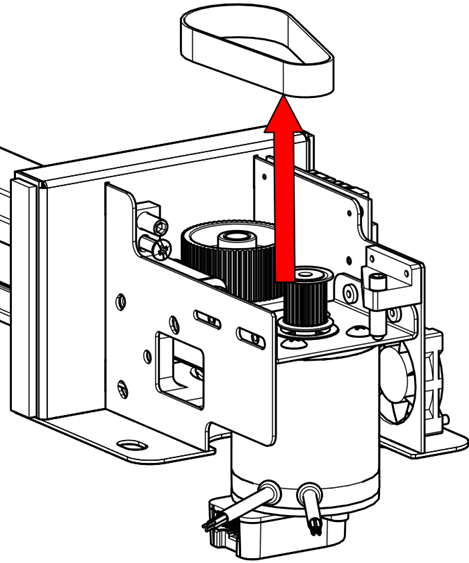

8. Remove the reducer belt.



9. Remove the motor mounting screws completely.

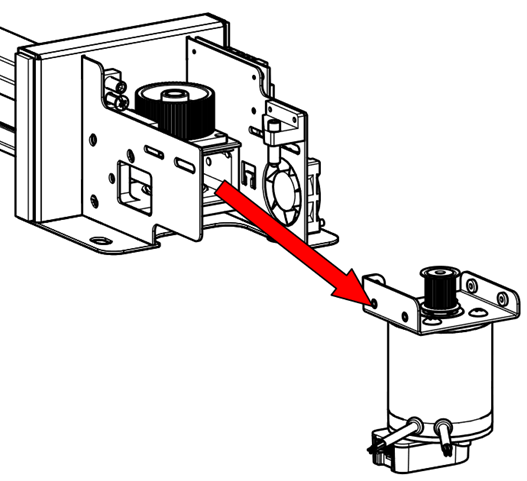

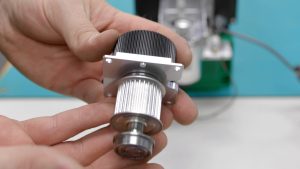

10. Remove the motor from the machine.



Installation

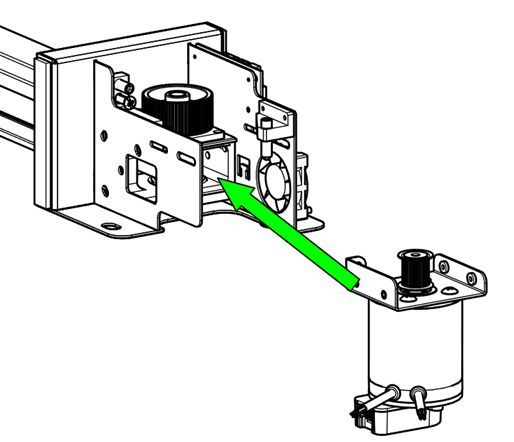

1. Install the motor onto the mounting location.



2. Install the motor mounting screws, but do not fully tighten them yet.

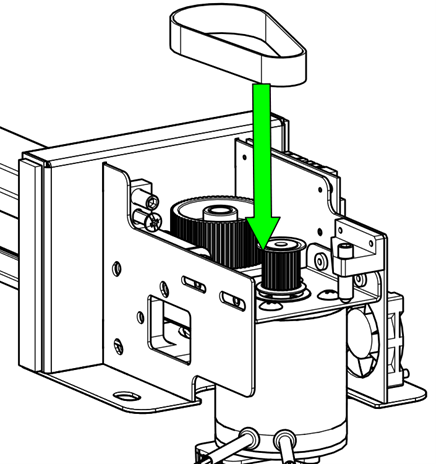

3. Install the reducer belt onto the pulleys.



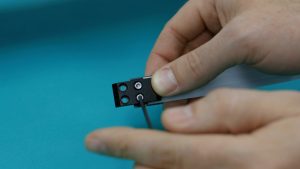

4. Apply appropriate tension to the belt.

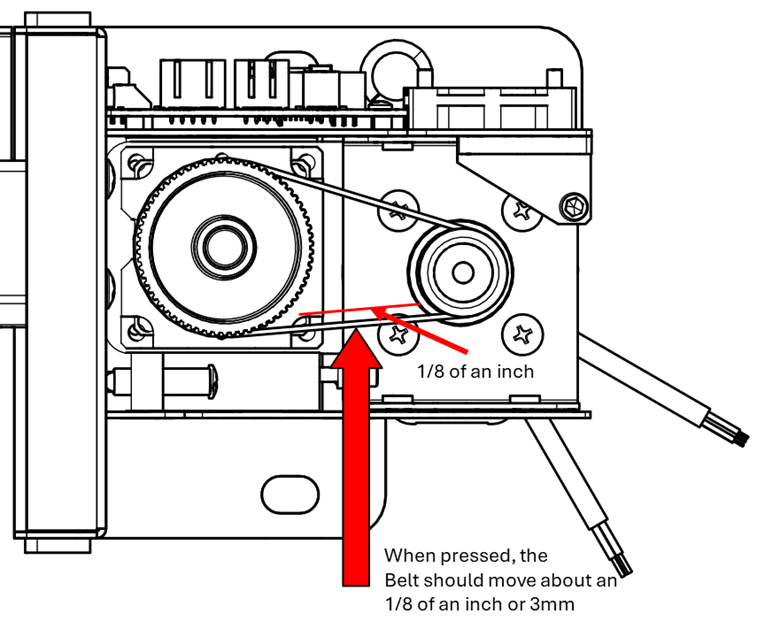

   Note: The belt should not be overly tight. When pressed from the side, it should deflect approximately 1/8″ (3mm).

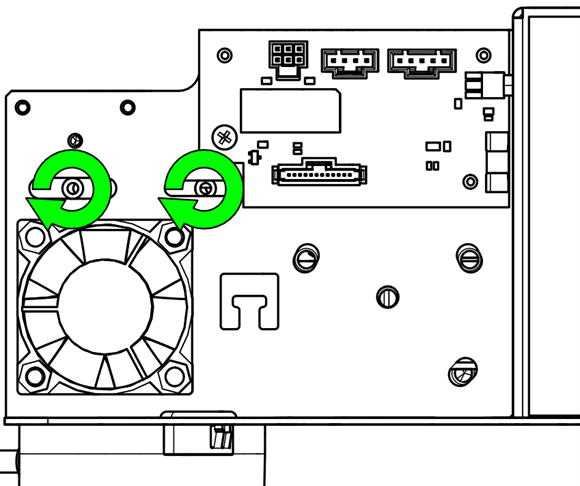

5. Tighten the motor mounting screws securely.

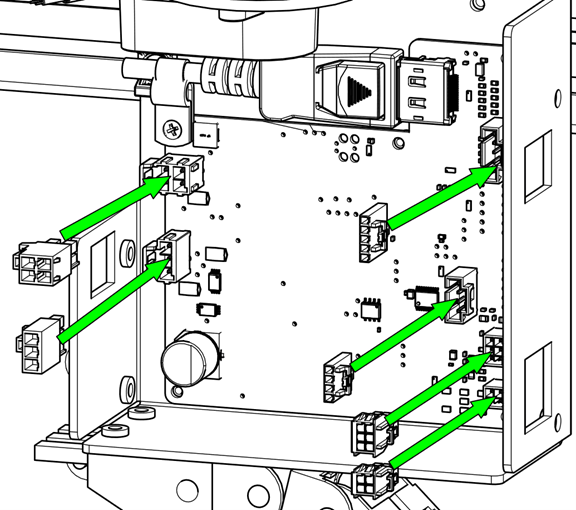

6. Reconnect the electrical harnesses to the X-Axis drive board and motor.




7. Reattach the X-Axis drive board cover.



8. Reinstall the right side panel.
